Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Fluid Auxiliary Pump
Removal
-
NOTE:
It is not necessary to remove the transmission fluid
filter to remove the transmission fluid auxiliary pump.
Remove the transmission fluid pan and gasket.
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).
-

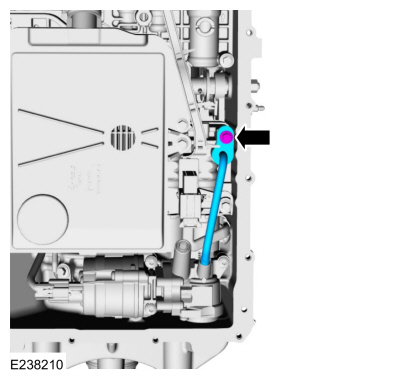

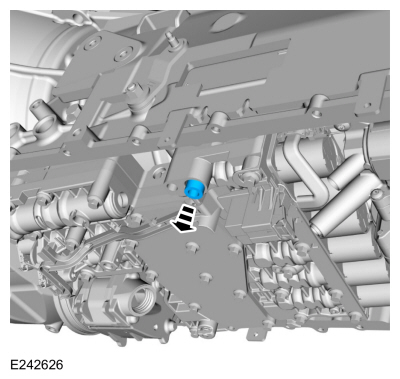

Remove the bolt and the transmission fluid auxiliary pump tube.
-

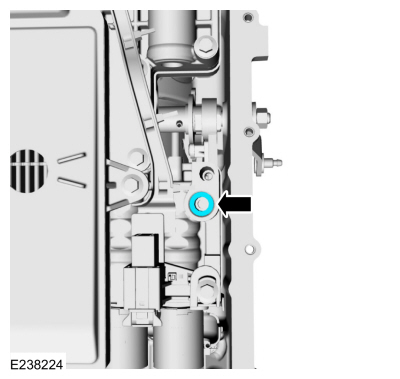

Remove the transmission fluid auxiliary pump tube seal.
-

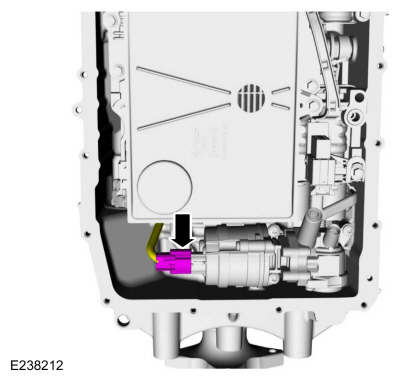

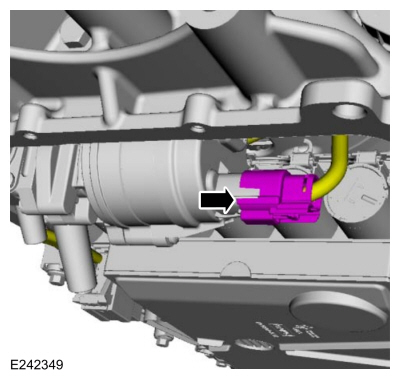

Disconnect the transmission fluid auxiliary pump.
-
NOTE:
A short 1/4" drive T-30 socket is required to remove the rear pump bolt.
NOTE:
The fluid auxiliary pump may need to be removed from the RH side of the vehicle to clear the exhaust system and fluid filter.

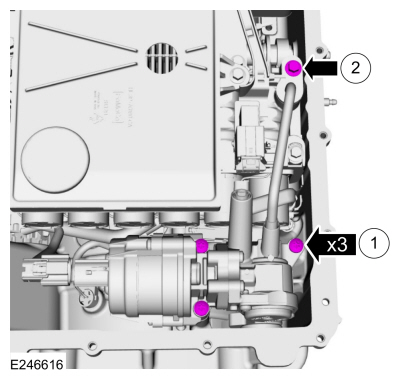

Remove the bolts and the transmission fluid auxiliary pump.
-

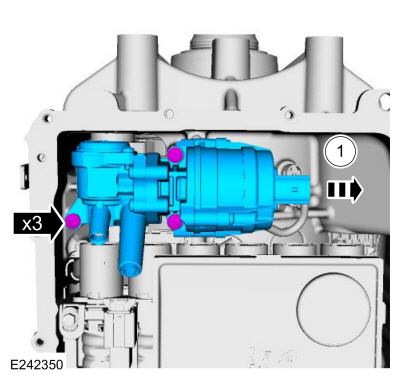

If necessary, remove the fluid auxiliary pump towards the RH side.
Installation
-

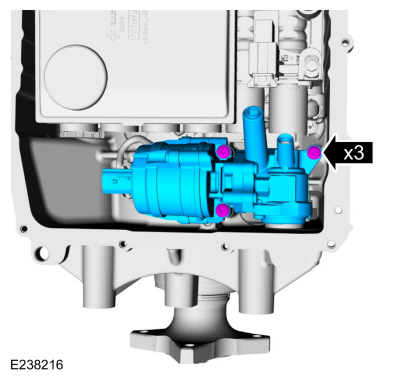

Install the transmission fluid auxiliary pump and loosely install the bolts.
-
Install the transmission fluid auxiliary pump tube seal.
-

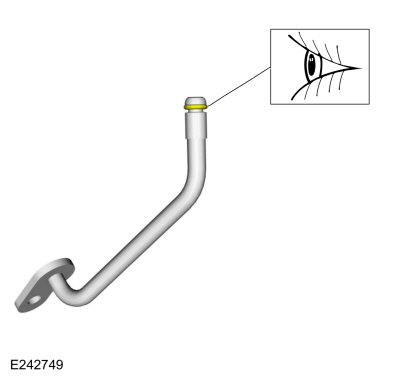

Inspect the transmission fluid auxiliary pump tube O-ring.
-

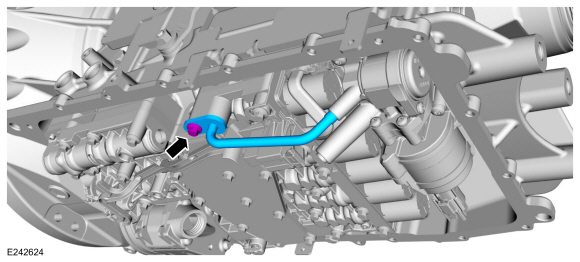

Install the transmission fluid auxiliary pump tube and loosely install the bolt.
-
-
Transmission fluid auxiliary pump bolts
Torque:
97 lb.in (11 Nm)
-
Transmission fluid auxiliary pump tube bolt
Torque:
106 lb.in (12 Nm)
-
Connect the transmission fluid auxiliary pump electrical connector.
-
Install the transmission fluid pan and gasket.
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).
Special Tool(s) /
General Equipment
