System Operation

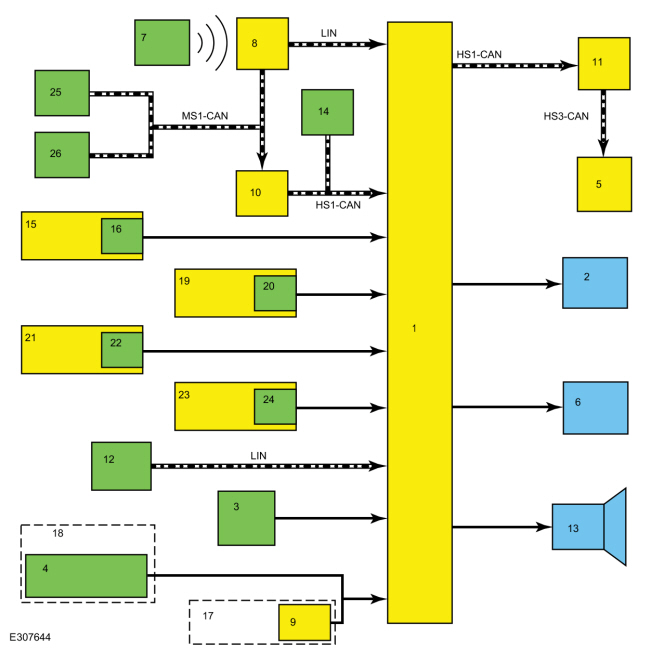

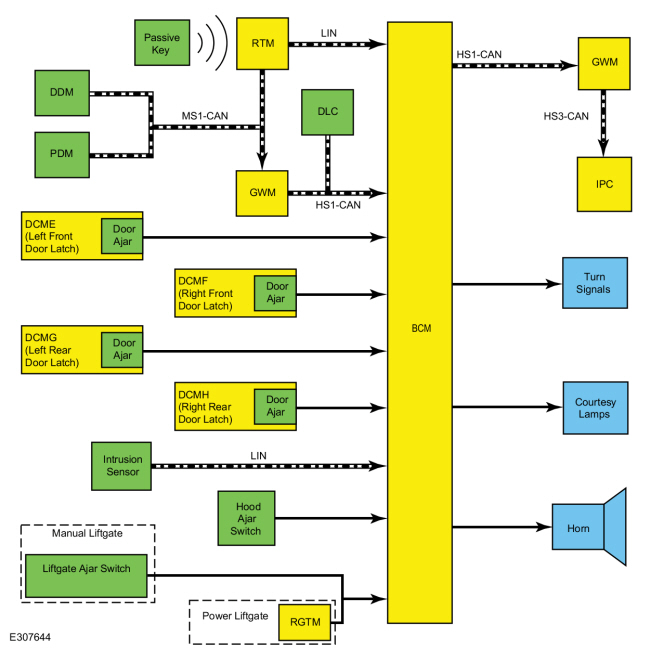

System Diagram


Item Description
1 BCM
2 Turn Signals
3 Hood Ajar Switch
4 Liftgate Ajar Switch
5 IPC
6 Courtesy Lamps
7 Passive Key
8 RTM
9 RGTM
10 GWM
11 GWM
12 Intrusion Sensor
13 Horn
14 DLC
15 DCME (Left Front Door)
16 Door Ajar Switch
17 Power Liftgate
18 Manual Liftgate
19 DCMF (Right Front Door)
20 Door Ajar Switch
21 DCMG (Left Rear Door)
22 Door Ajar Switch
23 DCMH (Right Rear Door)
24 Door Ajar Switch
25 DDM
26 PDM

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
RKE data   RTM Used by the BCM to arm/disarm the perimeter alarm or to activate/deactivate the panic alarm.
Driver door lock switch status   DDM Used by the BCM to arm the perimeter alarm.
Passenger door lock switch status   PDM Used by the BCM to arm the perimeter alarm.

Perimeter Alarm

The BCM controls the operation of the perimeter alarm. It monitors inputs from the RKE system, the passive entry system (if equipped), the power door lock system, the PATS and the ignition status to determine when to arm the perimeter alarm.

The BCM monitors all of the door ajar switches, the hood ajar switch, the CAN and the ignition status to determine when to activate the perimeter alarm. When the BCM detects an input indicating an unauthorized entry into the vehicle, the BCM activates the perimeter alarm by sounding the horn and flashing all the turn signals and interior courtesy lamps at regular intervals.

The BCM monitors the RKE system, the passive entry system (if equipped), and the PATS to determine when to disarm the perimeter alarm.

Perimeter Alarm Arming

The perimeter alarm is ready to arm any time the ignition is off. The perimeter alarm pre-arms when any of the following occur:

  • Pressing the lock button on a RKE transmitter
  • Pressing the door lock control switch lock button with a front door open, and then closing the door
  • Locking the vehicle with the passive entry feature
  • Touching the 7/8 and 9/0 buttons simultaneously on the keyless entry keypad

Once the system is pre-armed, there is a 20-second countdown before the perimeter alarm is armed. Each entry point to the vehicle (hood, doors and liftgate) is armed separately and must be closed before that entry point begins the 20-second countdown to become armed. If all entry points are closed, the turn signals flash upon locking indicating that all entry points are entering the 20-second countdown.

Perimeter Alarm Activation

The perimeter alarm has a 12-second delay when the driver front door is opened without using a valid programmed RKE transmitter or a passive key to unlock the vehicle. During the delay, a chime sounds. If the perimeter alarm is not disarmed within the 12-second delay, the alarm activates.

The perimeter alarm activates when any of the following actions are performed:

  • The driver front door is opened without first receiving an unlock command from the passive entry feature or a valid programmed RKE transmitter, and the 12-second delay has expired.
  • Any other door, the liftgate or the hood is opened without first receiving an electronic unlock command from the passive entry feature or a valid programmed RKE transmitter.
  • The intrusion sensor detects an unauthorized access event.
  • An attempt by a diagnostic scan tool to establish communication on the CAN is detected.

The perimeter alarm only activates 10 times per arming cycle. After that, the alarm does not activate. To enable the perimeter alarm again, disarm the perimeter alarm and then arm it again.

Perimeter Alarm Disarming

The perimeter alarm disarms when:

  • Pressing the unlock button on a door lock control switch within the 20-second pre-arm.
  • The smart unlock feature activates within the initial 20-second pre-arm.
  • Pressing the unlock button on a valid programmed RKE transmitter.
  • Pressing the liftgate release button on a valid programmed RKE transmitter (this only disarms the liftgate entry point with the rest of the vehicle remaining armed).
  • Using a valid programmed key to change the ignition to RUN.
  • Unlocking a front door or opening the liftgate using the passive entry feature.

CAN Protection Strategy

When the perimeter alarm is armed, the BCM monitors the CAN. If a diagnostic scan tool is connected to the DLC, and an attempt is made to establish a session with the BCM, it activates the perimeter alarm.

Every time the BCM detects an unauthorized access (alarm activates), all BCM programming, PID monitoring and self-test sessions are blocked for 10 minutes. At the end of the 10 minute time period, the horn chirps to indicate the 1 minute of opportunity to communicate with the BCM and program keys if none are available.


Refer to: Passive Anti-Theft System (PATS) - System Operation and Component Description (419-01B Passive Anti-Theft System (PATS), Description and Operation).

Component Description

Door Control Modules

The door control modules are sealed units comprised of:

  • Door latch release actuator
  • Door ajar switch
  • Door latch cinch motor (if equipped)
  • Latch position sensors
  • Module for communicating door latch functions over the network

The door ajar switch is monitored by the BCM and the primary function is for the courtesy lamps system.
Refer to: Interior Lighting - System Operation and Component Description (417-02 Interior Lighting, Description and Operation).

The lock/unlock solenoid is controlled by the BCM for locking and unlocking the door.
Refer to: Handles, Locks, Latches and Entry Systems - System Operation and Component Description (501-14 Handles, Locks, Latches and Entry Systems, Description and Operation).

The door control modules require PMI when replaced.

Hood Ajar Switch

The hood ajar switch is a single pole switch integrated into the hood latch that is normally closed when the hood is closed. When the hood is opened, the hood ajar switch opens to indicate an open hood.

The BCM sends a signal to the hood ajar switch, and based on the input, the BCM determines if the hood is open or closed.

Intrusion Sensor

The intrusion sensor has an integral inclination sensor and is monitored by the BCM. When the perimeter alarm is armed, the intrusion sensor monitors the passenger compartment for movement and the vehicle for inclinations. If movement in the passenger compartment or a vehicle incline/tilt is detected, it sends a signal to the BCM.

When the intrusion sensor is replaced, the LIN New Module Initialization procedure with the BCM must be carried out using a diagnostic scan tool.

BCM

The BCM controls the operation of the perimeter alarm. Based on input, the BCM arms, disarms, activates or deactivates the perimeter alarm.

The BCM requires PMI when replaced. Additionally, at least 2 keys must be programmed and the parameter reset procedure carried out.
