Lincoln Aviator: Engine - 3.0L EcoBoost / Removal and Installation - Oil Pan
Materials
| Name |
Specification |
Motorcraft® High Performance Engine RTV Silicone TA-357 |
WSE-M4G323-A6
|
Motorcraft® Silicone Gasket Remover ZC-30-A |
-
|
Motorcraft® Metal Surface Prep Wipes ZC-31-B |
-
|
Motorcraft® Metal Brake Parts Cleaner PM-4-A, PM-4-B |
-
|
Removal
NOTICE:
During engine repair procedures, cleanliness is extremely
important. Any foreign material, including any material created while
cleaning gasket surfaces, that enters the oil passages, coolant passages
or the oil pan, can cause engine failure.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the engine oil filter and drain the engine oil.
Refer to: Engine Oil Draining and Filling (303-01A Engine - 3.0L EcoBoost, General Procedures).
-

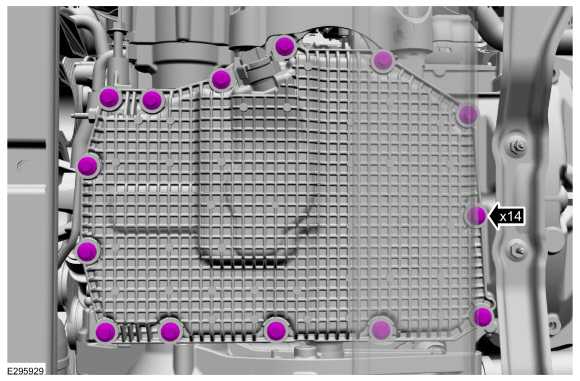

Remove the oil pan bolts.
-
-

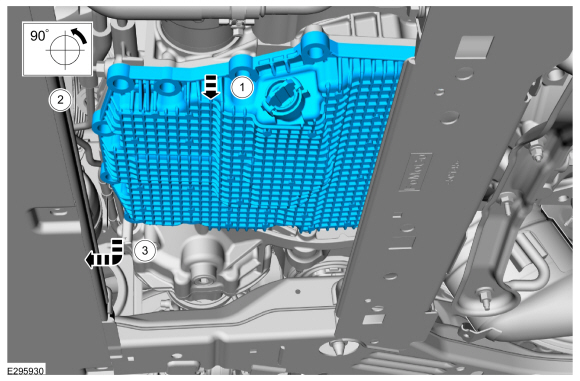

Lower the oil pan.
-
Rotate the oil pan counter clockwise.
-
Remove the oil pan.
-

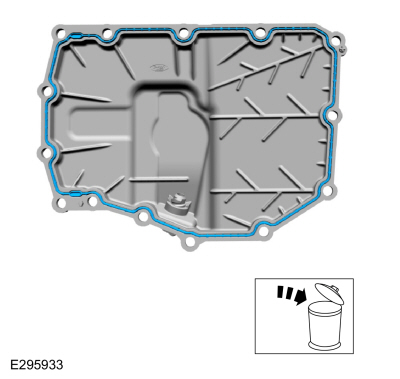

Remove and discard the gasket.
-
NOTICE:
Do not use metal scrapers, wire brushes, power
abrasive discs or other abrasive means to clean the sealing surfaces.
These tools cause scratches and gouges, which make leak paths. Use a
plastic scraping tool to remove traces of sealant.

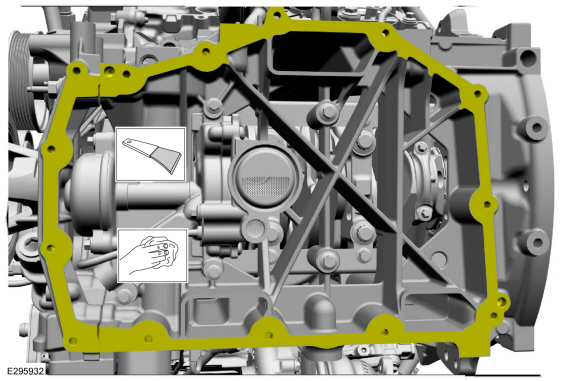

Make sure that the mating faces of the engine block and
engine front cover are clean and free of foreign material.
Installation
-
To install, reverse the removal procedure.
-

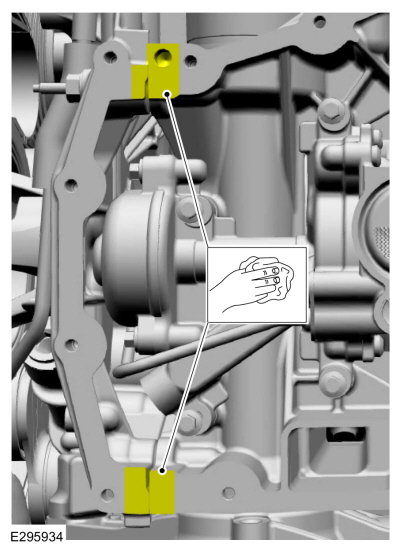

Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures).
Material: Motorcraft® Silicone Gasket Remover
/ ZC-30-A
Material: Motorcraft® Metal Surface Prep Wipes
/ ZC-31-B
Material: Motorcraft® Metal Brake Parts Cleaner
/ PM-4-A, PM-4-B
-
NOTICE:
Failure to use Motorcraft® High Performance Engine
RTV Silicone may cause the engine oil to foam excessively and result in
serious engine damage.
NOTE:
The oil pan must be installed within 10 minutes of
applying the sealer and the bolts must be installed and tightened to 2-5
Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of
the bolts must be completed within 60 minutes of applying the sealer.
Failure to follow this procedure can cause future oil leakage.
-
Install a new gasket.
-

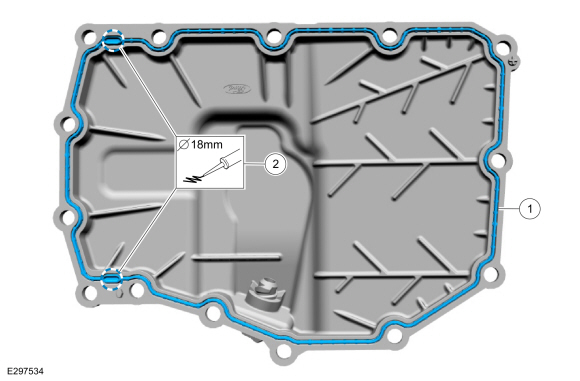

Apply 18 mm (0.7 in) drops of sealant.
Material: Motorcraft® High Performance Engine RTV Silicone
/ TA-357
(WSE-M4G323-A6)
-

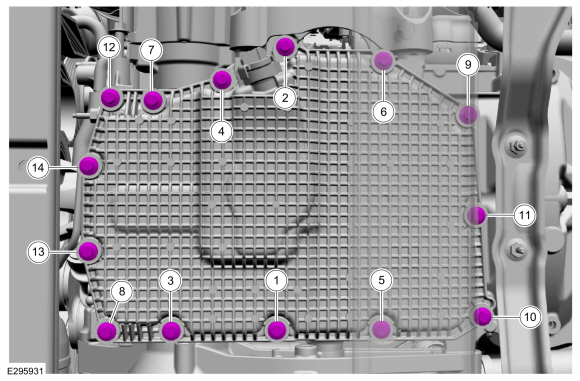

Tighten the bolts in 2 stages.
Torque:
Stage 1:
89 lb.in (10 Nm)
Stage 2:
45°
Special Tool(s) /
General Equipment
Hose Clamp Remover/Installer
Locking Pliers
Removal
NOTICE:
During engine repair procedures, cleanliness is extremely
important...
Removal
NOTICE:
During engine repair procedures, cleanliness is extremely
important. Any foreign material, including any material created while
cleaning gasket surfaces, that enters the oil passages, coolant passages
or the oil pan, can cause engine failure...
