Lincoln Aviator: Engine Cooling - 3.0L EcoBoost / Removal and Installation - Radiator
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the cooling module.
Refer to: Cooling Module (303-03A Engine Cooling - 3.0L EcoBoost, Removal and Installation).
-

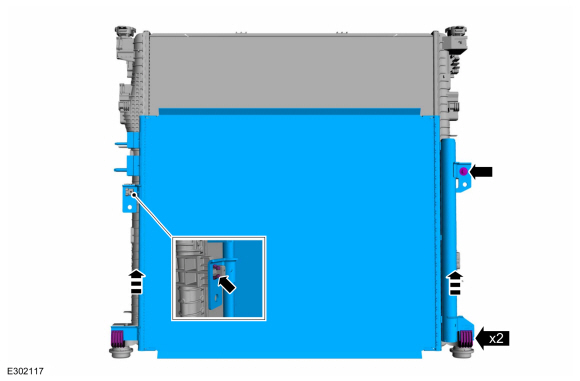

Remove the bolt, release the tabs and remove the A/C condenser.
Torque:
80 lb.in (9 Nm)
-

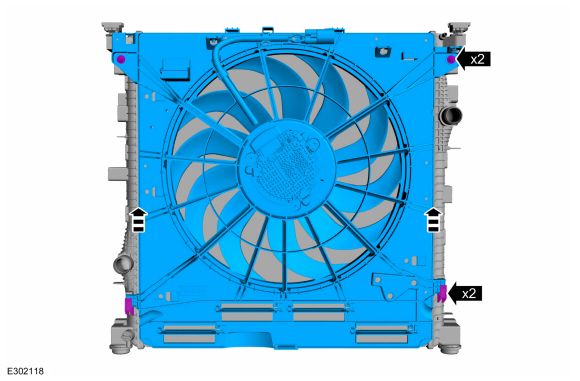

Remove the bolts, release the tabs and remove the cooling fan motor and shroud.
Torque:
71 lb.in (8 Nm)
-

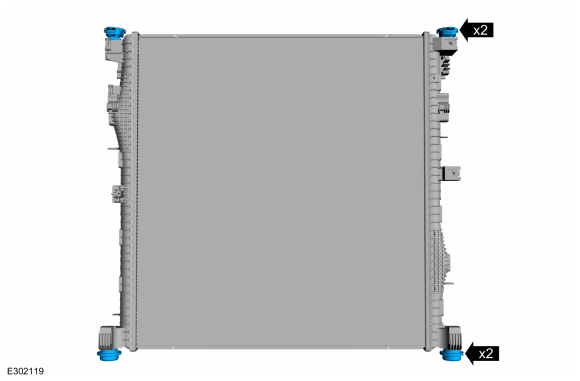

Remove the upper and lower radiator insulators.
Installation
-
To install, reverse the removal procedure.
-
Fill and bleed the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
