Lincoln Aviator: Audio System / Satellite Radio
SiriusXM® Satellite Radio broadcasts a
variety of music, news, sports, weather, traffic
and entertainment satellite radio channels.
For more information and a complete list of
SiriusXM satellite radio channels, visit
www.siriusxm.com in the United States,
www.siriusxm.ca in Canada, or call SiriusXM
at 1-888-539-7474.
Note: This receiver includes the eCos
real-time operating system. eCos is
published under the eCos License.

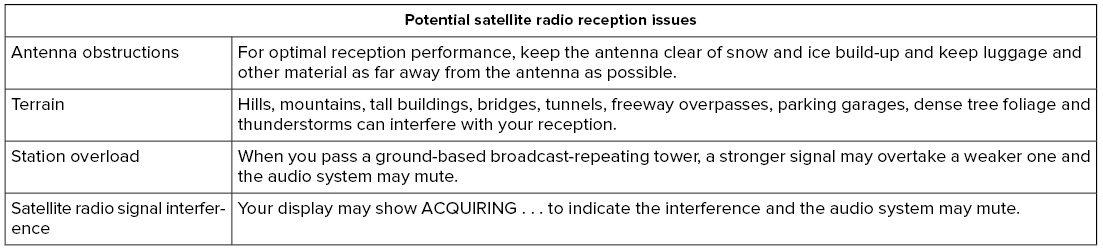

Satellite Radio Reception Factors
![Lincoln Aviator. Satellite Radio](images/satellite_radio-2229/1713/lincoln_aviator_satellite_radio_712.gif)
SiriusXM Satellite Radio Service
Note: SiriusXM reserves the unrestricted
right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Ford Motor Company shall not be
responsible for any such programming
changes.
![Lincoln Aviator. Satellite Radio](images/satellite_radio-2229/1713/lincoln_aviator_satellite_radio_713.gif)
SiriusXM satellite radio is a
subscription-based satellite radio service that
broadcasts a variety of music, sports, news,
weather, traffic and entertainment
programming. Your factory-installed SiriusXM
satellite radio system includes hardware and
a limited subscription term, which begins on
the date of sale or lease of your vehicle. See
an authorized dealer for availability.
For more information on extended
subscription terms (a service fee is required),
the online media player and a complete list
of SiriusXM satellite radio channels, and
other features, please visit www.siriusxm.com
in the United States, www.siriusxm.ca in
Canada, or call SiriusXM at 1-888-539-7474.
Satellite Radio Electronic Serial Number (ESN)
You need your ESN to activate, modify or
track your satellite radio account.
Locating Your ESN
With satellite radio as the source, use the
touchscreen to select the following:
- Select Settings.
- Select SiriusXM.
- Select SiriusXM information.

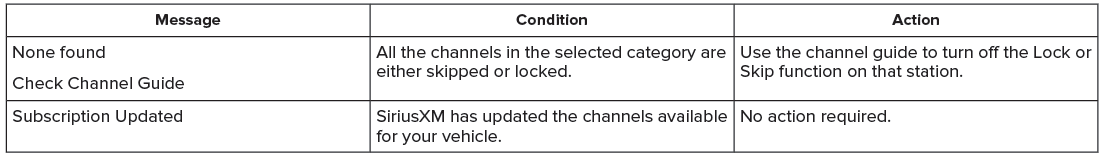

Troubleshooting
![Lincoln Aviator. Satellite Radio](images/satellite_radio-2229/1713/lincoln_aviator_satellite_radio_714.gif)
![Lincoln Aviator. Satellite Radio](images/satellite_radio-2229/1713/lincoln_aviator_satellite_radio_715.gif)
Note: HD Radio broadcasts are not available
in all markets.
HD Radio technology is the digital evolution
of analog AM/FM radio. Your system has a
special receiver that allows it to receive
digital broadcasts, where available, in
addition to the analog broadcasts, it already
receives...
