Lincoln Aviator: Body Repairs - Vehicle Specific Information and Tolerance Checks / Description and Operation - Body and Frame

The body consists of the following:

  • Front bumper constructed of high-strength aluminum
  • Rear bumper constructed of Boron and HSLA ultra high-strength steels
  • Front frame rails constructed of high-strength aluminum
  • Rear frame rails constructed of Boron ultra high-strength steel
  • Fender reinforcement tube constructed of Dual Phase (DP) 800 high-strength steel
  • Cast aluminum fender apron assembly
  • Liftgate outer panel constructed of mild steel
  • Body structure constructed of Boron, Dual Phase (DP) and high-strength steels
  • Roof panel reinforcements constructed of Dual Phase (DP) 600 and mild steel
  • Bolted, removable front fenders, hinged doors and hood
  • Bodyside outer panels constructed of mild steel
  • Steel hood hinges
  • Mastic pads used on floor pan for sound deadening

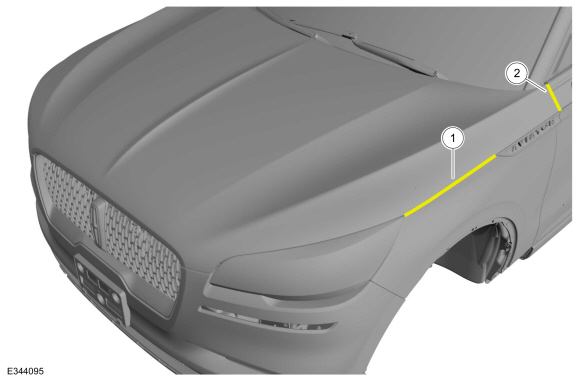

Front End Panel Margining

NOTE: Margining specifications apply to left hand (LH) and right hand (RH) side of the vehicle unless stated.

Item Description Panel Margin Specification Flush Specification
1 Hood to Fender 3.5 mm Maximum: 5.2 mm Minimum: 1.8 mm Variable
2 Fender to Door Upper 5.7 mm Maximum: 7.9 mm Minimum: 3.5 mm -1.2 mm Maximum: 1.0 mm Minimum: -3.4 mm

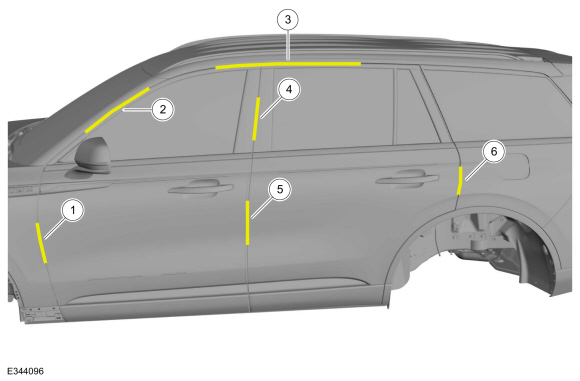

Side Panel Margining

NOTE: Margining specifications apply to left hand (LH) and right hand (RH) side of the vehicle unless stated.

Item Description Panel Margin Specification Flush Specification
1 Fender to Door Lower 3.4 mm Maximum 4.9 mm Minimum 1.9 mm

NOTE: Front door under-flush to fender.

0.5 mm Maximum -2.0 mm Minimum 1.0 mm
2 Door Frame to A-Pillar 4.5 mm Maximum: 7.2 mm Minimum: 1.8 mm 2.0 mm Maximum: 4.5 mm Minimum: -0.5 mm
3 Front and Rear Door to Body Side 4.5 mm Maximum: 6.5 mm Minimum: 2.5 mm

NOTE: Door under-flush to body side.

2.0 mm Maximum: 4.5 mm Minimum: -0.5 mm
4 Front Door Frame to Rear Door Frame 3.7 mm Maximum: 5.7 mm Minimum: 1.7 mm 0.0 mm Maximum: 2.7 mm Minimum: -2.7 mm
5 Front Door to Rear Door 3.4 mm Maximum: 4.9 mm Minimum: 1.9 mm

NOTE: Rear door under-flush to front door.

-0.5 mm Maximum: 1.5 mm Minimum: -2.5 mm
6 Rear Door to Quarter Panel 3.4 mm Maximum: 4.9 mm Minimum: 1.9 mm 0.0 mm Maximum: 1.5 mm Minimum: -1.5 mm

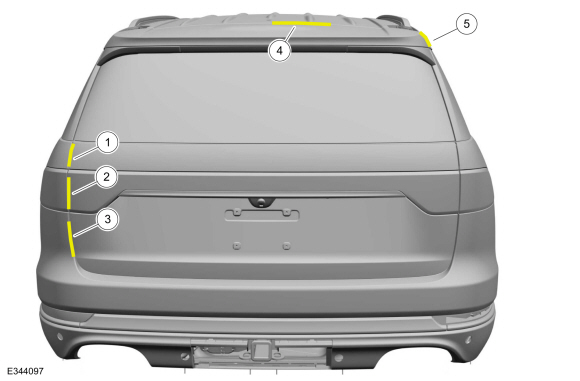

Rear Panel Margining

NOTE: Margining specifications apply to left hand (LH) and right hand (RH) side of the vehicle unless stated.

Item Description Panel Margin Specification Flush Specification
1 Liftgate to Quarter Panel 4.6 mm Maximum: 6.1 mm Minimum: 3.1 mm 1.4 mm Maximum: 3.4 mm Minimum: -0.6 mm
2 Redundant Lamp to Tail Lamp 3.6 mm Maximum: 6.1 mm Minimum: 1.1 mm 1.5 mm Maximum: 3.9 mm Minimum: -0.9 mm
3 Liftgate to Rear Bumper Cover 5.2 mm Maximum: 7.8 mm Minimum: 2.6 mm 2.0 mm Maximum: 5.0 mm Minimum: -1.0 mm
4 Spoiler to Roof 7.6 mm Maximum 10.0 mm Minimum 5.2 mm

NOTE: Spoiler under-flush to roof.

1.5 mm Maximum: 4.1 mm Minimum: -1.1 mm
5 Spoiler to Quarter Panel 5.3 mm Maximum: 7.5 mm Minimum: 3.1 mm 2.0 mm Maximum: 4.4 mm Minimum: -0.4 mm

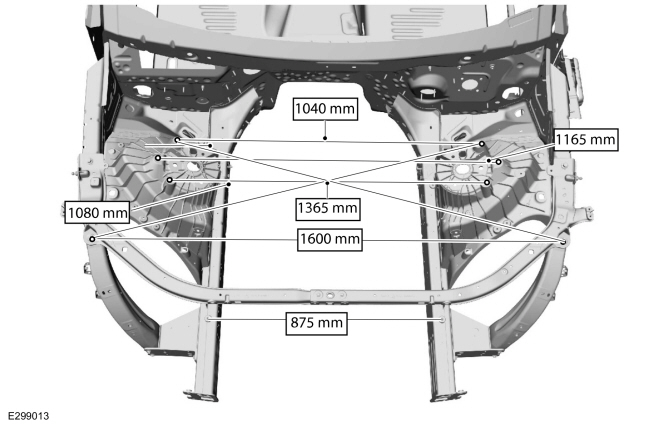

Under Hood Dimensions

NOTE: All dimensions on center unless otherwise indicated.

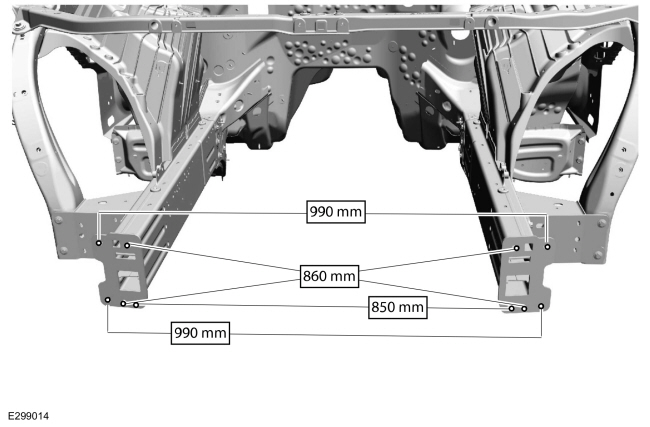

Front Structure Dimensions

NOTE: All dimensions on center unless otherwise indicated.

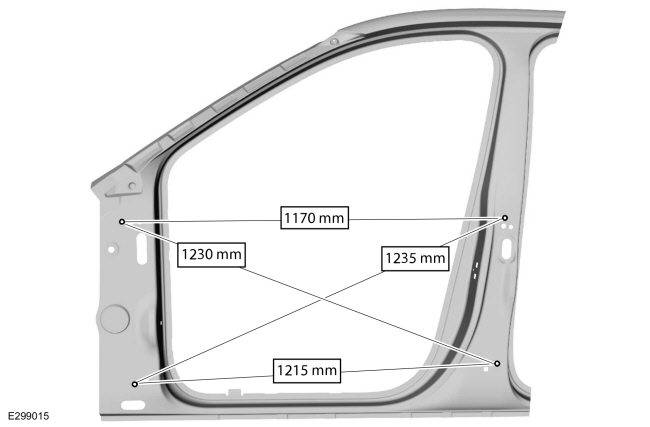

Front Door Opening Dimensions

NOTE: All dimensions on center unless otherwise indicated.

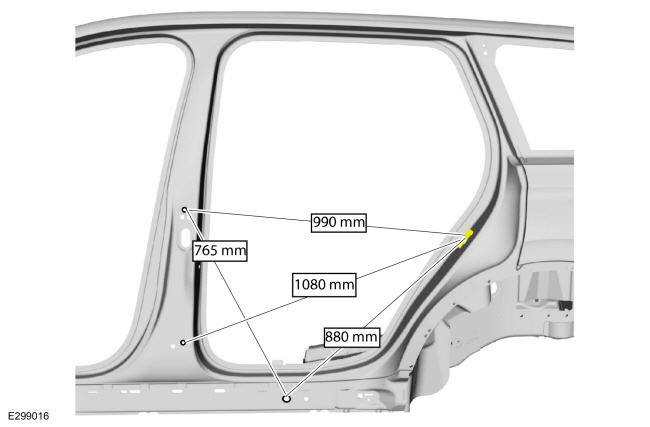

Rear Door Opening Dimensions

NOTE: All dimensions on center unless otherwise indicated.

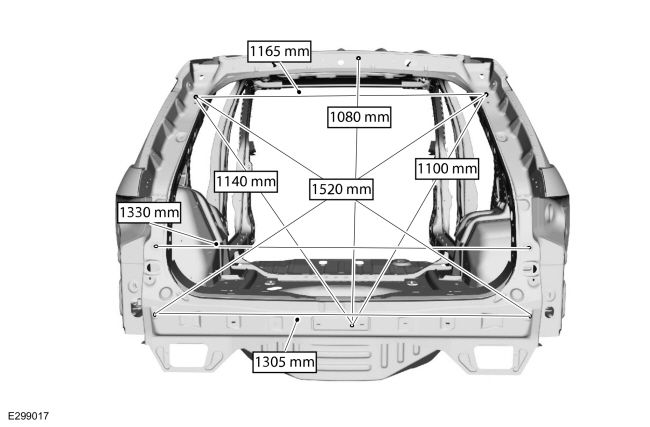

Liftgate Opening Dimensions

NOTE: All dimensions on center unless otherwise indicated.

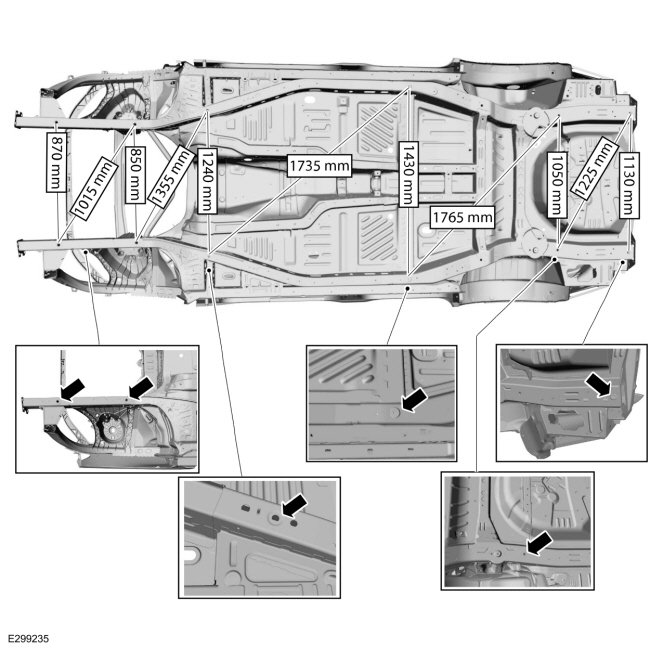

Underbody Dimensions

NOTE: All dimensions on center unless otherwise indicated.

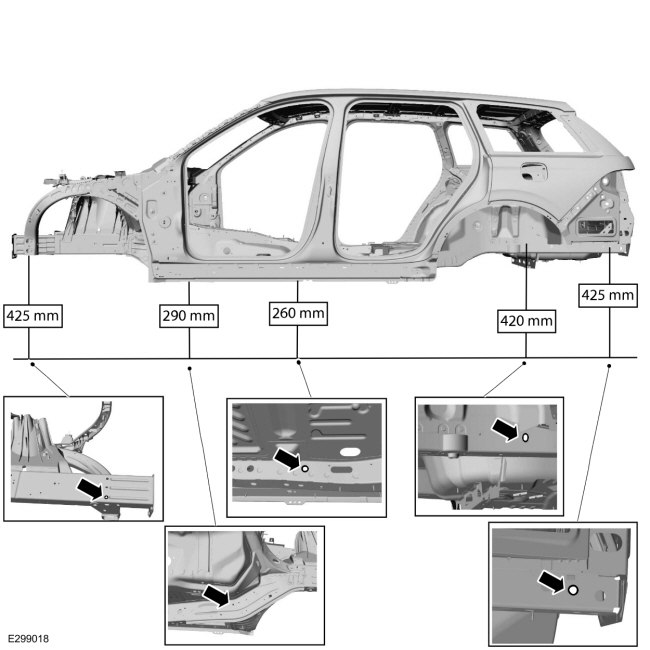

Datum Height Dimensions
