Lincoln Aviator: Exhaust System - 3.0L EcoBoost / Description and Operation - Exhaust System - Component Location

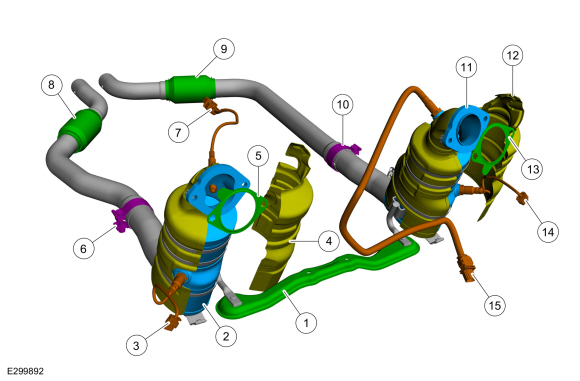

Item |
Description |
1 |
Support bracket
|
2 |
RH catalytic converter
|
3 |
Exhaust gas oxygen sensor - downstream
|
4 |
RH catalytic converter heat shield
|
5 |
Exhaust gasket
|
6 |
Exhaust clamp
|
7 |
Exhaust gas oxygen sensor - upstream
|
8 |
RH exhaust flexible pipe
|
9 |
LH exhaust flexible pipe
|
10 |
Exhaust clamp
|
11 |
LH catalytic converter
|
12 |
LH catalytic converter heat shield
|
13 |
Exhaust gasket
|
14 |
Exhaust gas oxygen sensor - downstream
|
15 |
Exhaust gas oxygen sensor - upstream
|
|
|

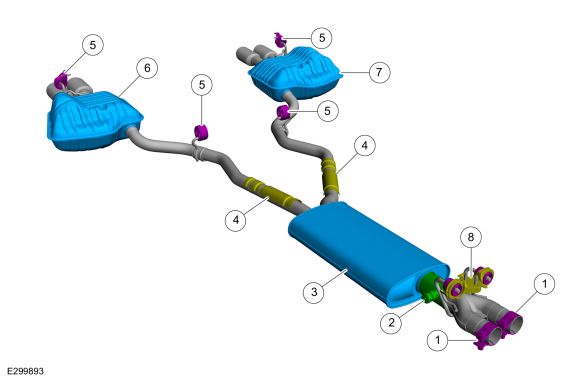

Item |
Description |
1 |
Exhaust clamps
|
2 |
Passive valve (if equipped)
|
3 |
Resonator
|
4 |
Heat shield
|
5 |
Isolators
|
6 |
RH muffler
|
7 |
LH muffler
|
8 |
Exhaust hanger bracket
|
Overview
NOTICE:
Do not use leaded fuel in a vehicle equipped with a
catalytic converter. In a vehicle that is continually misfueled, the
lead in the fuel will be deposited in the catalytic converter and
completely blanket the catalyst...
System Operation
Catalyst And Exhaust Systems
The
catalytic converter and exhaust systems work together to control the
release of harmful engine exhaust emissions into the atmosphere...
