Lincoln Aviator: Transmission Cooling - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Cooling - Component Location

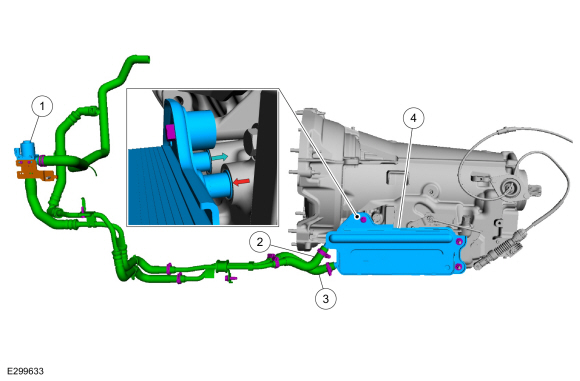

Item |
Description |
1 |
Transmission fluid cooler coolant control valve |
2 |
Transmission fluid cooler coolant inlet hose |
3 |
Transmission fluid cooler coolant outlet hose |
4 |
Transmission fluid cooler |
The
transmission fluid cooling system consists of a heat exchanger mounted
to the transmission. The heat exchanger has both transmission fluid and
engine coolant flowing through it in separate chambers...
Diagnostic Trouble Code (DTC) Chart
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
PCM
P1783:00
Transmission Overtemperature Condition:No Sub Type Information
GO to Pinpoint Test B
PCM
P2681:00
Engine Coolant Bypass Valve A Control Circuit/Open:No Sub Type Information
GO to Pinpoint Test A
PCM
P2683:00
Engine Coolant Bypass Valve A Control Circuit High:No Sub Type Information
GO to Pinpoint Test A
Inspection and Verification
NOTICE:
When internal wear/damage occurs in the transmission, metal
particles, clutch plate material and band material can travel into the
torque converter, the transmission fluid cooler tubes, the transmission
fluid cooler, the transmission fluid warmer (if equipped), and the
cooler bypass valve (if equipped)...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
DSM
B12A7:11
Steering Column Tilt Sensor A: Circuit Short To Ground
GO to Pinpoint Test C
DSM
B12A7:15
Steering Column Tilt Sensor A: Circuit Short To Battery or Open
GO to Pinpoint Test C
DSM
B12A8:11
Steering Column Telescope Sensor A: Circuit Short To Ground
GO to Pinpoint Test C
DSM
B12A8:15
Steering Column Telescope Sensor A: Circuit Short To Battery or Open
GO to Pinpoint Test C
DSM
B1375:11
Steering Column Tilt Motor: Circuit Short To Ground
GO to Pinpoint Test D
DSM
B1375:12
Steering Column Tilt Motor: Circuit Short To Battery
GO to Pinpoint Test D
DSM
B1375:13
Steering Column Tilt Motor: Circuit Open
GO to Pinpoint Test D
DSM
B137E:11
Steering Column Telescope Motor: Circuit Short To Ground
GO to Pinpoint Test D
DSM
B137E:12
Steering Column Telescope Motor: Circuit Short To Battery
GO to Pinpoint Test D
DSM
B137E:13
Steering Column Telescope Motor: Circuit Open
GO to Pinpoint Test D
Symptom Chart
Symptom Chart: Power Adjustable Steering Column
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
