Remote Control Feedback

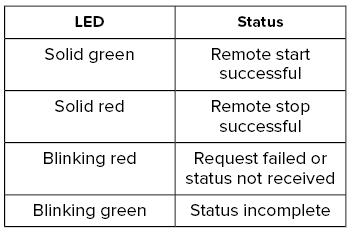

An LED on the remote control provides status
feedback of remote start or stop commands.

Remote Starting Your Vehicle

- Press the lock button to lock all the
doors.
- Press the remote start button twice. The
exterior lamps flash twice.
A tone sounds if the system fails to start.
Note: You must press each button within
three seconds of each other. If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators do
not flash twice and the horn does not sound.
Note: Press the push button ignition switch
on the instrument panel as you apply the
brake pedal before driving your vehicle.
The power windows do not work during
remote start and the radio does not turn on.
The parking lamps remain on and your
vehicle runs for 5, 10 or 15 minutes,
depending on the setting.
WARNING: Do not start the engine
in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start the
engine...
Extending the Engine Running Time
To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B1314:11
White Lighting (Reflective Controls) Illumination Output: Circuit Short To Ground
GO to Pinpoint Test I
BCM
B1314:15
White Lighting (Reflective Controls) Illumination Output: Circuit Short To Battery or Open
GO to Pinpoint Test I
BCM
B1315:11
Backlighting (Non Reflective Controls) Illumination Output: Circuit Short To Ground
GO to Pinpoint Test C
BCM
B1315:15
Backlighting (Non Reflective Controls) Illumination Output: Circuit Short To Battery or Open
GO to Pinpoint Test C
DCME
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DCMF
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DCMG
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DCMH
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DDM
B12FF:11
Rear Door Switch Illumination: Circuit Short To Ground
GO to Pinpoint Test G
DDM
B12FF:15
Rear Door Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test G
DDM
U2010:11
Switch Illumination: Circuit Short to Ground
GO to Pinpoint Test E
DDM
U2010:15
Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test E
PDM
B12FF:11
Rear Door Switch Illumination: Circuit Short To Ground
GO to Pinpoint Test H
PDM
B12FF:15
Rear Door Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test H
PDM
U2010:11
Switch Illumination: Circuit Short to Ground
GO to Pinpoint Test F
PDM
U2010:15
Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test F
Symptom Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
System Operation
System Diagram
Item
Description
1
APIM
2
BCM
3
ACM
4
WACM
5
GWM
Network Message Chart
APIM Module Network Input Messages
Broadcast Message
Originating Module
Message Purpose
WACM send signals
WACM
Contains the status of the WACM charging input to be used for FCIM display...
