Lincoln Aviator: Rear Drive Axle/Differential / Disassembly and Assembly - Differential Carrier
Special Tool(s) /
General Equipment
.jpg) |
205-1016 Installer, Differential Bearing TKIT-2014D-ROW2 TKIT-2014D-FL_ROW |
.jpg) |
205-153
(T80T-4000-W)
Handle |
| Two Leg Puller |
DISASSEMBLY
-
Remove the differential carrier.
Refer to: Differential Carrier (205-02 Rear Drive Axle/Differential, Removal and Installation).
-
Both side.

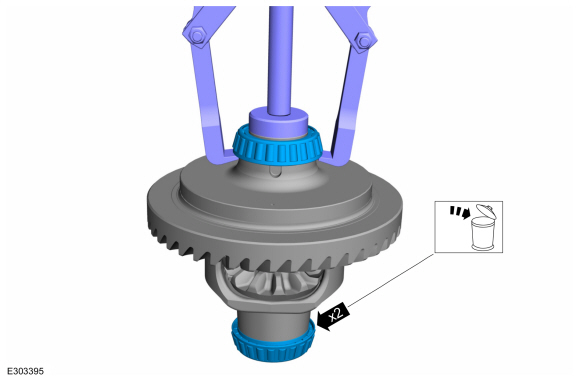

Using the general equipment, remove and discard the differential bearings.
Use the General Equipment: Two Leg Puller
-
NOTICE:
Make sure the mating surfaces are clean and free of oil, dust and debris.
NOTE:
Use solvent and Scotch-Brite® pads to remove.

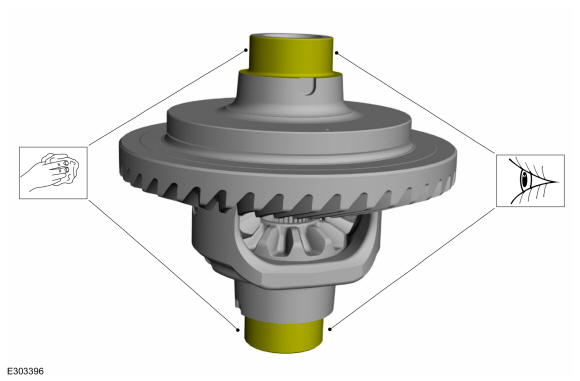

Clean and inspect the differential carrier bearing mating surface.
ASSEMBLY
-
Both side.

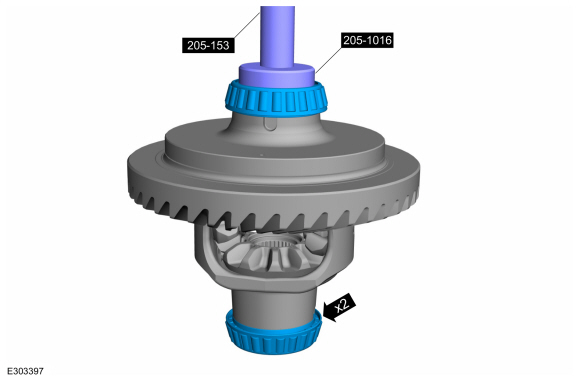

Using the special tool, install the new differential bearings.
Use Special Service Tool: 205-1016
Installer, Differential Bearing.
, 205-153
(T80T-4000-W)
Handle.
-
Check the differential ring gear backlash.
Refer to: Ring Gear Backlash Adjustment (205-02 Rear Drive Axle/Differential, General Procedures).
-
Install the differential carrier.
Refer to: Differential Carrier (205-02 Rear Drive Axle/Differential, Removal and Installation).
Special Tool(s) /
General Equipment
205-153
(T80T-4000-W)
Handle
307-758Installer, Axle Seal -FWD
Feeler Gauge
Flat Headed Screw Driver
Removal
NOTE:
The stub shaft seals must be replaced whenever the halfshafts are removed...
