Lincoln Aviator: Interior Lamps / Front Interior Lamp

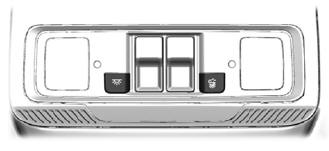

The front interior lamp switches are on the
overhead console.
Note: The position of each button on the
overhead console depends on your vehicle.
All Lamps On or Off
Press to switch all interior
lamps
on or off.
Individual Map Lamps
Touch the lamp lens to switch the map lamps
on and off.
Interior Lamp Function
Press to switch the interior
lamp
function on and off.
When the interior lamp function is off and
you open a door, the courtesy and door
lamps stay off.
When the interior lamp function is on and
you open a door, the courtesy and door
lamps turn on.
Note: The indicator lamp lights amber when
the door function is off.
The lamps turn on under the following
conditions:
You open any door.
You press a button on the remote control.
You press the all lamps on button on the
overhead console...
The rear interior lamps may be above the
rear seat or above the rear windows.
Press to switch the lamps on or
off.
Note: If the rear lamps are switched on
through the overhead console, you cannot
switch them off with the rear lamp switch...
Other information:
Removal
NOTICE:
During the removal of components, cap, tape or otherwise
appropriately protect all openings to prevent the ingress of dirt or
other contamination. Remove protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
PCM
P00FE:00
EVAP System Tank Vapor Line Restricted/Blocked: No Sub Type Information
GO to Pinpoint Test HX
PCM
P043E:00
EVAP System Leak Detection Reference Orifice Low Flow: No Sub Type Information
GO to Pinpoint Test HX
PCM
P043F:00
EVAP System Leak Detection Reference Orifice High Flow: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0442:00
EVAP System Leak Detected (Small Leak): No Sub Type Information
GO to Pinpoint Test HX
PCM
P0443:00
EVAP System Purge Control Valve A Circuit: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0446:00
EVAP System Vent Control Circuit: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0451:00
EVAP System Pressure Sensor / Switch A Circuit Range / Performance: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0452:00
EVAP System Pressure Sensor / Switch A Circuit Low: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0453:00
EVAP System Pressure Sensor / Switch A Circuit High: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0454:00
EVAP System Pressure Sensor / Switch A Circuit Intermittent: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0455:00
EVAP System Leak Detected (Large Leak): No Sub Type Information
GO to Pinpoint Test HX
PCM
P0456:00
EVAP System Leak Detected (Very Small Leak): No Sub Type Information
GO to Pinpoint Test HX
PCM
P0457:00
EVAP System Leak Detected (Fuel Cap Loose / Off): No Sub Type Information
GO to Pinpoint Test HX
PCM
P0460:00
Fuel Level Sensor A Circuit: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0461:00
Fuel Level Sensor A Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0462:00
Fuel Level Sensor A Circuit Low: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0463:00
Fuel Level Sensor A Circuit High: No Sub Type Information
GO to Pinpoint Test HX
PCM
P0496:00
EVAP System High Purge Flow: No Sub Type Information
GO to Pinpoint Test HX
PCM
P04EA:00
EVAP System Small Leak Detected - Fuel Tank Side: No Sub Type Information
GO to Pinpoint Test HX
PCM
P04EB:00
EVAP System Small Leak Detected - Fresh Air Side: No Sub Type Information
GO to Pinpoint Test HX
PCM
P04ED:00
EVAP System Large Leak Detected - Fresh Air Side: No Sub Type Information
GO to Pinpoint Test HX
PCM
P04EE:00
EVAP System Very Small Leak Detected - Fuel Tank Side: No Sub Type Information
GO to Pinpoint Test HX
PCM
P04EF:00
EVAP System Very Small Leak Detected - Fresh Air Side: No Sub Type Information
GO to Pinpoint Test HX
PCM
P04F0:00
EVAP System High Load Purge Line A Performance: No Sub Type Information
GO to Pinpoint Test HX
PCM
P144A:00
EVAP System Purge Vapor Line Restricted/Blocked: No Sub Type Information
GO to Pinpoint Test HX
PCM
P144B:00
EVAP System Secondary Purge Vapor Line Restricted/Blocked: No Sub Type Information
GO to Pinpoint Test HX
PCM
P144C:00
EVAP System Purge Flow Performance During Boost: No Sub Type Information
GO to Pinpoint Test HX
PCM
P1450:00
Unable To Bleed Up Fuel Tank Vacuum: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2401:00
EVAP System Leak Detection Pump Control Circuit Low: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2402:00
EVAP System Leak Detection Pump Control Circuit High: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2418:00
EVAP System Switching Valve Control Circuit/Open: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2450:00
EVAP System Switching Valve Performance/Stuck Open: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2451:00
EVAP System Switching Valve Stuck Closed: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24B9:00
EVAP System Leak Detection Pump Pressure Sensor Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24BA:00
EVAP System Leak Detection Pump Pressure Sensor Circuit Low: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24BB:00
EVAP System Leak Detection Pump Pressure Sensor Circuit High: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24BC:00
EVAP System Leak Detection Pump Pressure Sensor Circuit Intermittent: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24BE:00
EVAP System Leak Detection Pump Vacuum Switching Valve Control Circuit Low: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24BF:00
EVAP System Leak Detection Pump Vacuum Switching Valve Control Circuit High: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24C0:00
EVAP System Leak Detection Pump Vacuum Switching Valve Stuck On: No Sub Type Information
GO to Pinpoint Test HX
PCM
P24C1:00
EVAP System Leak Detection Pump Vacuum
Switching Valve Performance/Stuck Off: No Sub Type Information
GO to Pinpoint Test HX
PCM
P260F:00
EVAP System Monitoring Processor Performance: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2DDA:00
EVAP System Leak Detection Pump Performance/Stuck Off: No Sub Type Information
GO to Pinpoint Test HX
PCM
P2DDB:00
EVAP System Leak Detection Pump Stuck On: No Sub Type Information
GO to Pinpoint Test HX
