Programming
-
This procedure should be performed when a new
transmission or main control valve body is installed in the vehicle.
-
13 - digit solenoid body strategy
-
12 - digit solenoid body identification
-
If a new main control was installed, record the
13-digit solenoid body strategy from the replacement solenoid body tag
provided with the main control service kit. Place the replacement tag
over the existing identification tag.
-

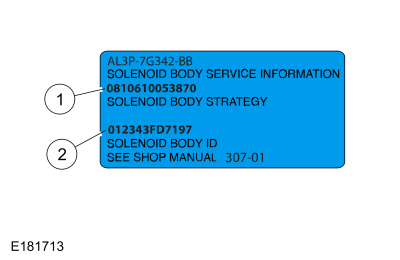

If a new transmission was installed, record the
13-digit solenoid body strategy from the solenoid body service
information tag on the side of the transmission.
-
Using the scan tool, Select Toolbox and download the PCM – Transmission Strategy Download tool.
-
Run the PCM
– Transmission Strategy Download tool. Follow the instructions
displayed on the scan tool. There are fields to enter the solenoid body
12-digit identification and 13-digit strategy recorded from the solenoid
body
-
Enter the solenoid body 13-digit strategy. The scan tool
verifies the numbers entered are valid and displays a message if the
information is not valid.
-
Follow the instructions displayed on the scan tool to program the transmission strategy file into the PCM.
-
NOTICE:
If a drive cycle is not completed, erratic shifts and driveability concerns may occur.
Road test the vehicle following the Adaptive Learning Drive Cycle.
Refer to: Adaptive Learning Drive Cycle (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, General Procedures).
Materials
Name
Specification
Motorcraft® MERCON® ULV Automatic Transmission FluidXT-12-QULV
WSS-M2C949-A, MERCON® ULV
Check
With the vehicle in NEUTRAL, position it on a hoist...
Removal
Remove the main control valve body.
Refer to: Main Control Valve Body (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation)...
