Lincoln Aviator: Towing / Recommended Towing Weights

Note: Do not exceed the trailer weight for your vehicle configuration listed in the chart below.

Note: Be sure to take into consideration trailer frontal area. Do not exceed 55 ft² (5.11 m²) if your vehicle can tow a class III trailer.

Note: Your vehicle could have reduced performance when operating at high altitudes and when heavily loaded or towing a trailer. When driving at elevation, in order to match driving performance as perceived at sea level, reduce gross vehicle weight and gross combination weight by 2% per 1,000 ft (300 m) elevation.

Note: Certain states require electric trailer brakes for trailers over a specified weight. Be sure to check state regulations for this specified weight. The maximum trailer weights listed may be limited to this specified weight, as the vehicle’s electrical system may not include the wiring connector needed to activate electric trailer brakes. Your vehicle may tow a trailer provided the maximum trailer weight is less than or equal to the maximum trailer weight listed for your vehicle configuration on the following chart.

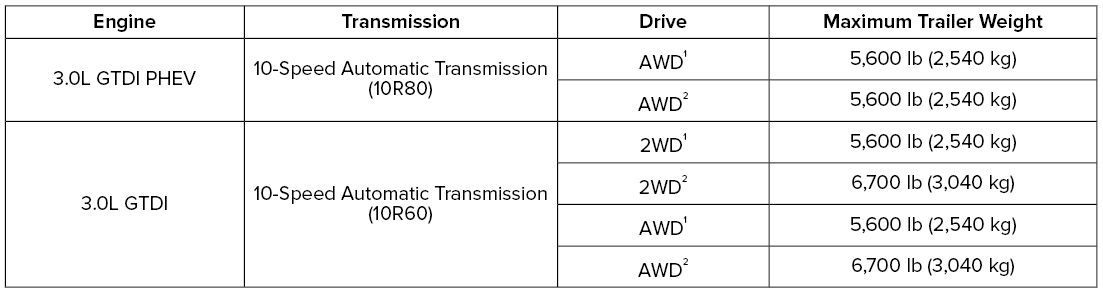

Lincoln Aviator. Recommended Towing Weights

1 Without Trailer Tow Package.

2 With Trailer Tow Package.

    Trailer Sway Control (If Equipped)

    WARNING: Turning off trailer sway control increases the risk of loss of vehicle control, serious injury or death. Ford does not recommend disabling this feature except in situations where speed reduction may be detrimental (such as hill climbing), the driver has significant trailer towing experience, and can control trailer sway and maintain safe operation...

    Essential Towing Checks

    Follow these guidelines for safe towing: Do not tow a trailer until you drive your vehicle at least 1,000 mi (1,600 km). Consult your local motor vehicle laws for towing a trailer...
