Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Telematics Control Unit (TCU) Module Antenna Coaxial Cable
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the subwoofer speaker.
Refer to: Subwoofer Speaker (415-00 Information and Entertainment System - General Information, Removal and Installation).
-

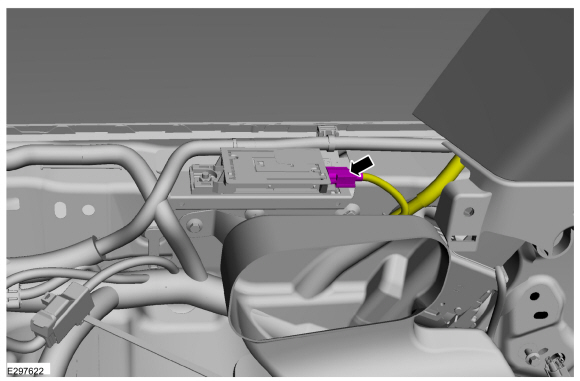

Disconnect the electrical connector.
-
Disconnect the electrical connector.
Installation
NOTE:
The original equipment telematics antenna coaxial cable is
part of the wiring harness and cannot be removed. This procedure refers
to replacement of the telematics antenna coaxial cable by overlaying
existing body harness with a new telematics antenna coaxial cable and
securing it to the wiring harness.
-

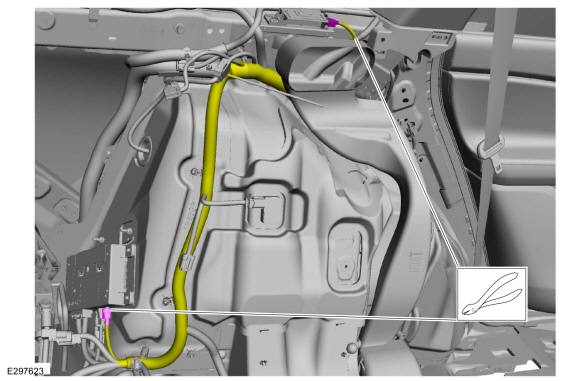

Cut the ends off the old telematics antenna coaxial
cable. Overlay the new telematics antenna coaxial cable on the vehicle
wiring harness following the routing shown. Secure the new telematics
antenna coaxial cable to the wiring harness with tape or zip ties as
necessary.
-
To install, reverse the removal procedure.
