Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Blower Motor Control Module

Removal

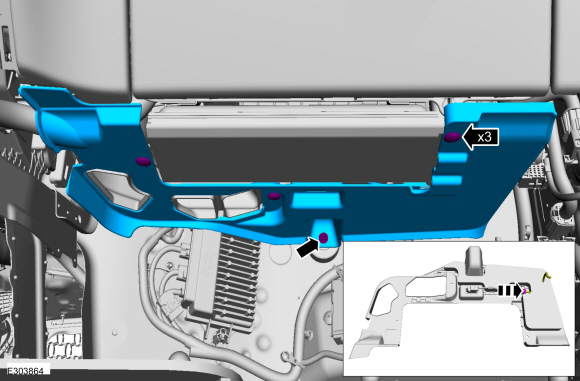

  1. Remove the push pins, the nut and the RH insulation panel.
    • Disconnect the electrical connector.

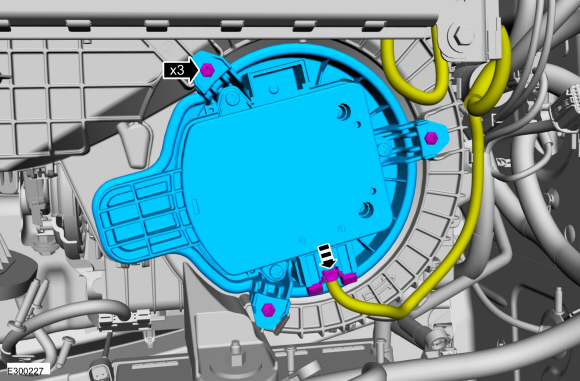

  1. Remove the bolts and the blower motor control module.
    • Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
