Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Heating, Ventilation and Air Conditioning (HVAC) Control Module

Removal

  1. NOTE: Removal steps in this procedure may contain installation details.

    NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the HVAC control module following the onscreen instructions.
  1. Remove the driver knee air bag.
    Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

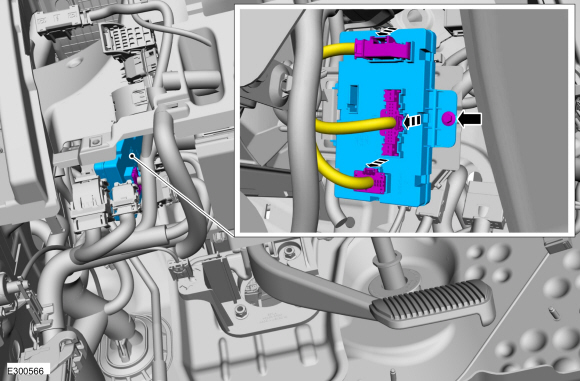

  1. Remove the bolt and the HVAC control module.
    • Disconnect the electrical connector.
      Torque: 22 lb.in (2.5 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the HVAC control module following the on-screen instructions.
