Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Passenger Side Footwell Air Discharge Temperature Sensor

Removal


  1. Fully lower the glove compartment.
    1. Disconnect the check strap.
    1. Push the stop tabs inward.

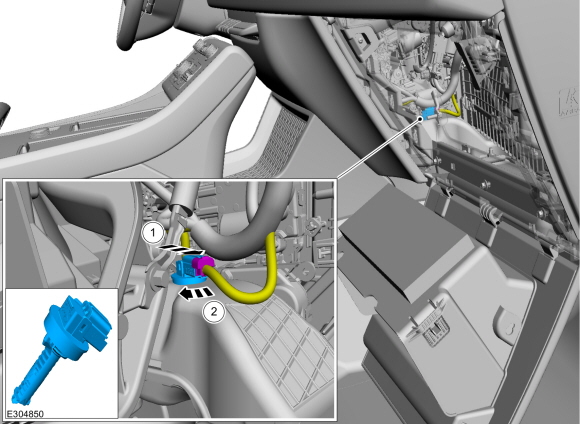

  1. Remove the passenger side register air discharge tempreature sensor.
    1. Disconnect the electrical connector.
    1. Remove the sensor.

Installation

  1. To install, reverse the removal procedure.
