Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Passenger Side Register Air Discharge Temperature Sensor
Special Tool(s) /
General Equipment
Removal
-

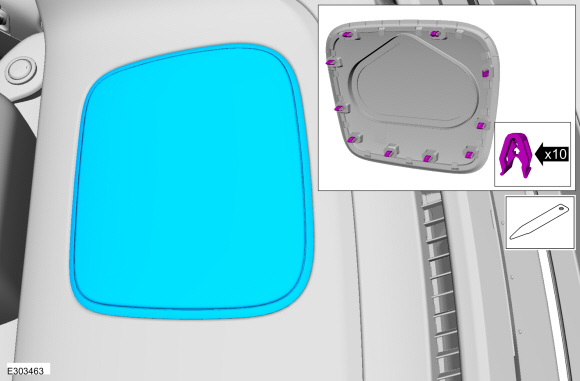

Release the clips and remove the insutment panel speaker grille.
Use the General Equipment: Interior Trim Remover
-

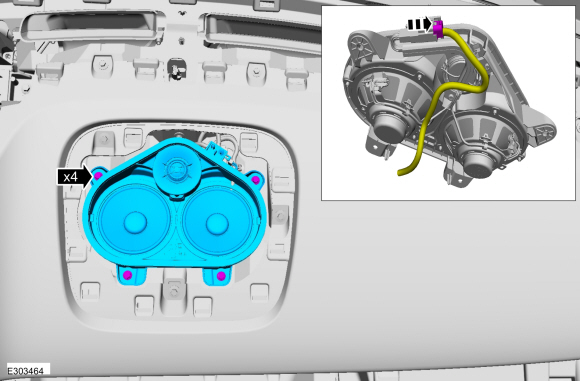

Remove the bolts and the instrument panel speaker.
-
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
-

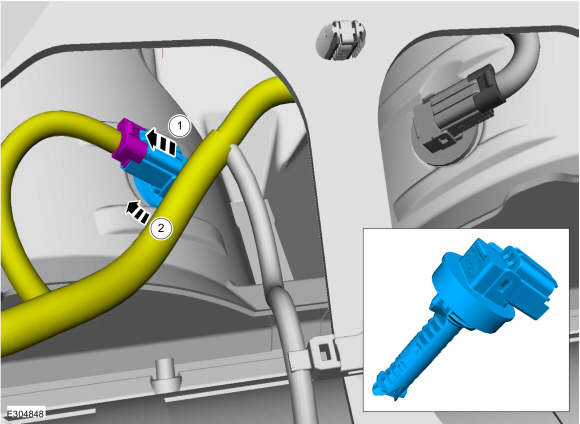

Remove the passenger side register air discharge tempreature sensor.
-
Disconnect the electrical connector.
-
Remove the sensor.
Installation
-
To install, reverse the removal procedure.
