Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Passenger Side Temperature Door Actuator

Removal

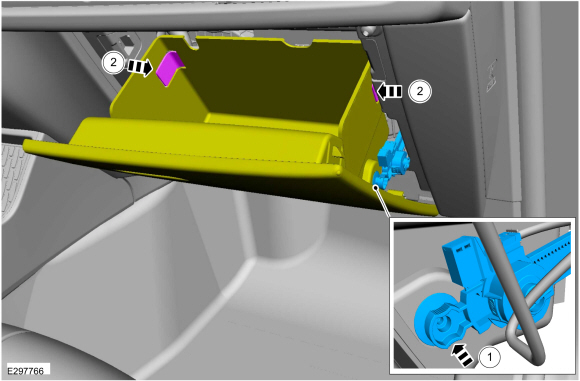

  1. Fully lower the glove compartment.
    1. Disconnect the check strap.
    1. Push the stop tabs inward.

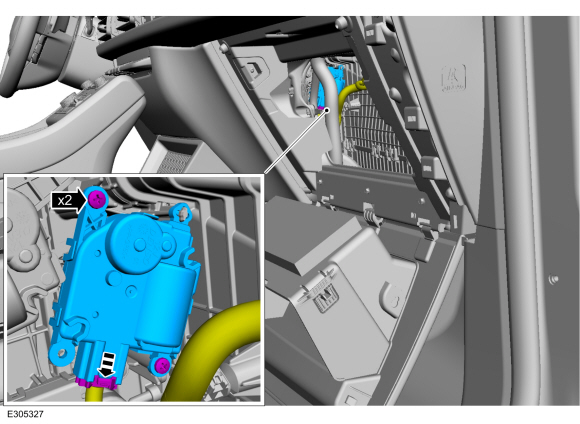

  1. Remove the scres and the passenger side tempreature door actuator.
    • Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
