Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Sunload Sensor
Special Tool(s) /
General Equipment
Removal
-

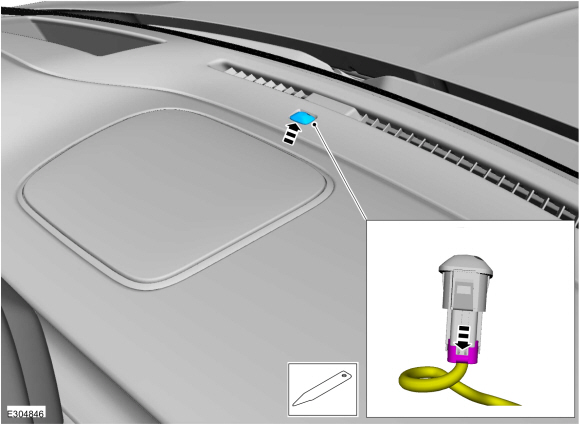

Remove the sunload sensor from the instrument panel.
-
Disconnect the electrical connector.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
Removal
Fully lower the glove compartment.
Disconnect the check strap.
Push the stop tabs inward.
Remove the scres and the passenger side tempreature door actuator...
Removal
Fully lower the glove compartment.
Disconnect the check strap.
Push the stop tabs inward.
Remove the screws and the temperature door actuator...
Other information:
System Operation
System Diagram
Item
Description
1
FDIM
2
Microphone
3
APIM
4
GWM
5
Ambient Air Temperature (AAT) sensor
6
PCM
7
A/C pressure transducer
8
A/C clutch relay ( BCMC)
9
A/C compressor clutch field coil
10
Externally Controlled Variable Displacement Compressor (EVDC)
11
Sunload sensor
12
In-vehicle temperature and humidity sensor
13
Evaporator temperature sensor
14
HVAC control module
15
Air distribution door actuator
16
Temperature door actuator
17
Passenger side temperature door actuator
18
Air inlet door actuator
19
Blower motor relay (BCMC)
20
Blower motor control module
21
Driver side register air discharge temperature sensor
22
Passenger side register air discharge temperature sensor
23
Driver side footwell air discharge temperature sensor
24
Ambient air quality sensor (if equipped)
25
Passenger side footwell air discharge temperature sensor
26
SOBDMC
27
ACCM
28
BCM
29
Particulate filter sensor (if equipped)
Network Message Chart
ACCM - Module Network Input Messages
Broadcast Message
Originating Module
Message Purpose
Ambient air temperature filtered
PCM \ PCM_ HEV
This message contains the climate control system controls ambient air temperature information...
