Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Front Door Keyless Entry Antenna
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-

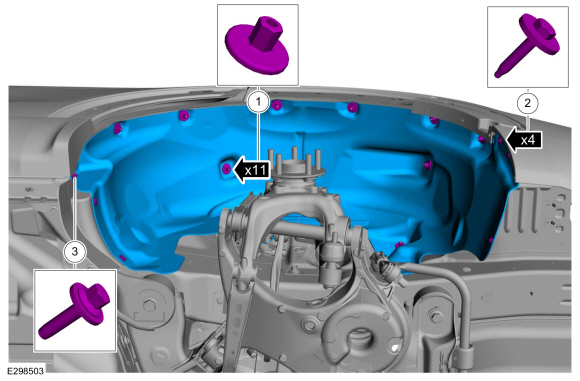

Remove the splash shield.
-
Remove the nuts and screws.
-
Remove the bolt and splash shield.
Torque:
89 lb.in (10 Nm)
-
Remove the front door keyless entry antenna.
-

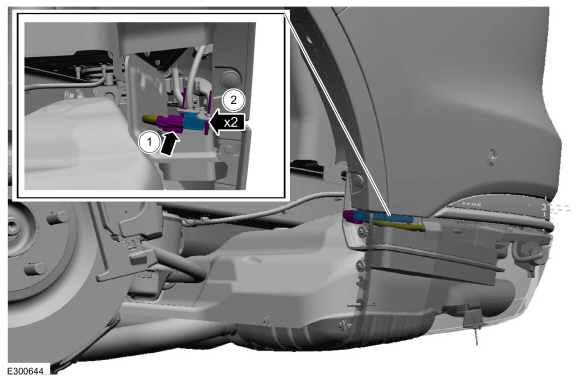

Disconnect the front door keyless entry antenna electrical connector.
-
Remove the rivets and the front door keyless entry antenna.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear door window regulator and motor...
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
NOTE:
The PMI process must begin with the current door
latch control module installed...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B1175:01
Driver Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B1175:01
Driver Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B1176:01
Passenger Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B1176:01
Passenger Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B11C0:01
Driver Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B11C0:01
Driver Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B11C1:01
Passenger Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B11C1:01
Passenger Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B12C2:11
Puddle Lamp:Circuit Short To Ground
GO to Pinpoint Test H
BCM
B12C2:15
Puddle Lamp:Circuit Short To Battery or Open
GO to Pinpoint Test H
BCM
B1306:01
Liftgate Ajar Switch:General Electrical Failure
GO to Pinpoint Test K
BCM
B1306:11
Liftgate Ajar Switch:Circuit Short To Ground
GO to Pinpoint Test K
BCM
B1313:11
Interior Lighting Output:Circuit Short To Ground
GO to Pinpoint Test B
BCM
B1313:15
Interior Lighting Output:Circuit Short To Battery or Open
If the courtesy lamps are always on, GO to Pinpoint Test B
BCM
B1313:15
Interior Lighting Output:Circuit Short To Battery or Open
If the courtesy lamps are always on, GO to Pinpoint Test D
BCM
B145C:11
Ambient Lighting Power Supply Output:Circuit Short To Ground
GO to Pinpoint Test I
BCM
B145C:15
Ambient Lighting Power Supply Output:Circuit Short To Battery or Open
GO to Pinpoint Test I
BCM
B1465:00
Ambient Lighting Bus 1:No Sub Type Information
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1465:00
Ambient Lighting Bus 1:No Sub Type Information
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B1465:96
Ambient Lighting Bus 1:Component Internal Failure
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1465:96
Ambient Lighting Bus 1:Component Internal Failure
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B1467:00
Ambient Lighting Bus 3:No Sub Type Information
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1467:00
Ambient Lighting Bus 3:No Sub Type Information
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B1467:96
Ambient Lighting Bus 3:Component Internal Failure
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1467:96
Ambient Lighting Bus 3:Component Internal Failure
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B14AA:11
Demand Lamp Output:Circuit Short To Ground
GO to Pinpoint Test E
BCM
B14AA:15
Demand Lamp Output:Circuit Short To Battery or Open
GO to Pinpoint Test E
BCM
B153C:11
Color Ambient Light Output:Circuit Short To Ground
GO to Pinpoint Test I
BCM
B153C:15
Color Ambient Light Output:Circuit Short To Battery or Open
GO to Pinpoint Test I
DCME
B1175:19
Drivers Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DCMF
B1176:19
Passenger Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DCMG
B11C0:19
Driver Side Rear Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DCMH
B11C1:19
Passenger Side Rear Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DDM
B1165:11
Left Front Puddle Lamp Output:Circuit Short To Ground
GO to Pinpoint Test G
DDM
B1165:15
Left Front Puddle Lamp Output:Circuit Short To Battery Or Open
GO to Pinpoint Test G
PDM
B1166:11
Right Front Puddle Lamp Output:Circuit Short To Ground
GO to Pinpoint Test G
PDM
B1166:15
Right Front Puddle Lamp Output:Circuit Short To Battery Or Open
GO to Pinpoint Test G
RGTM
B1306:12
Liftgate Ajar Switch:Circuit Short To Battery
GO to Pinpoint Test C
Symptom Chart(s)
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
