Lincoln Aviator: Rear Climate Control / Removal and Installation - Rear Air Distribution Door Actuator
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

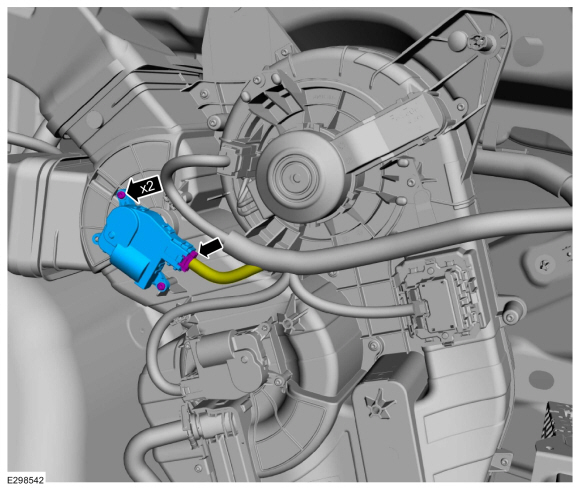

Disconnect the electrical connector, remove the retainers and the rear air distribution door actuator.
Installation
-
To install, reverse the removal procedure.
System Operation
System Diagram
Item
Description
1
HVAC control module
2
Rear air distribution door actuator
3
Rear temperature door actuator
4
Rear blower motor relay
5
Rear blower motor speed control
6
Rear blower motor
7
Rear air discharge temperature sensor
8
Rear temperature sensor - Second Row
9
Rear footwell air discharge temperature sensor
10
Rear temperature sensor - Third Row
11
IPC
12
GWM
13
FCIMB
14
RACM (Rear Touch screen)
15
APIM ( FDIM Touch Screen)
16
RHVAC control module (Rear Non touch screen)
Network Message Charts
Module Network Input Messages - APIM
Broadcast Message
Originating Module
Message Purpose
Climate control button status
HVAC control module
This message contains the HVAC climate control settings for the touch screen display...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
