Lincoln Aviator 2020-2026 Service Manual / Electrical / Climate Control System / Rear Climate Control / Removal and Installation - Rear Evaporator

Lincoln Aviator: Rear Climate Control / Removal and Installation - Rear Evaporator

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear climate control housing.
Refer to: Rear Climate Control Housing (412-02A Rear Climate Control, Removal and Installation).

1. NOTE: Replace the pass-through floor seal with new if seal is removed or damaged.

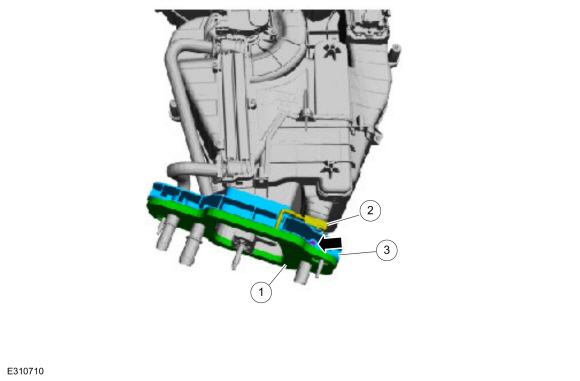

  Remove the pass-through floor seal.
1. If equipped, position aside the electrical connector.
1. Remove the retainer and the evaporator access cover.

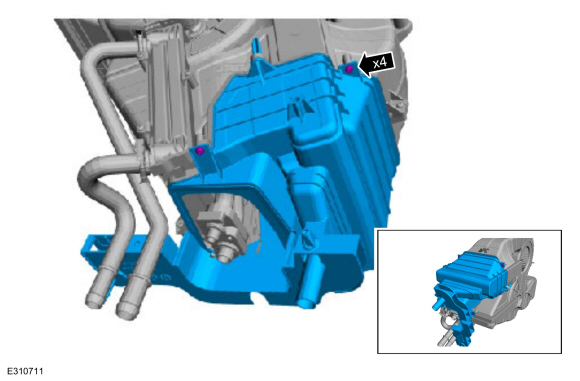

Remove the retainers and the evaporator cover.

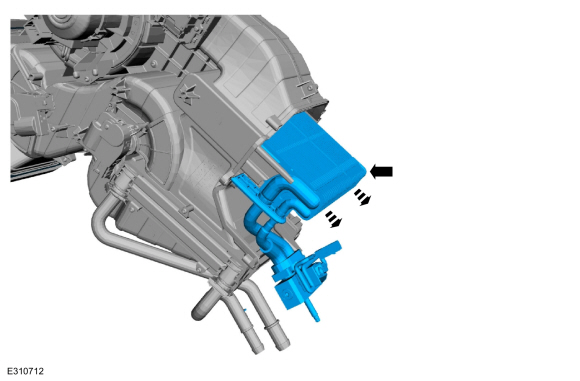

Remove the rear evaporator.

Installation

NOTE: Replace the pass-through floor seal with new if seal is removed or damaged.
To install, reverse the removal procedure.
