Lincoln Aviator: Roof Sheet Metal Repairs / Removal and Installation - Roof Reinforcement

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment
Spot Weld Drill Bit
Locking Pliers

Removal

NOTE: Vehicles equipped with a roof opening panel will use the rear most reinforcement only.

WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).

Remove the roof panel.
Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
Refer to: Roof Panel - Vehicles With: Roof Opening Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).

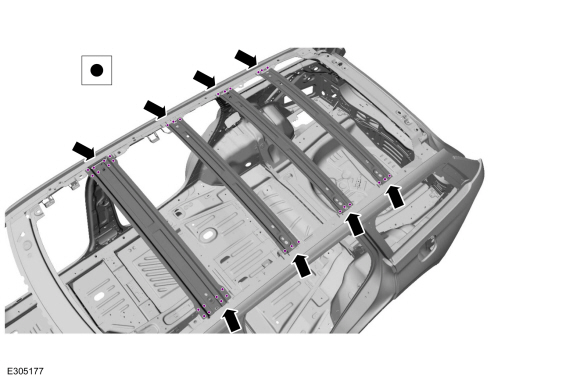

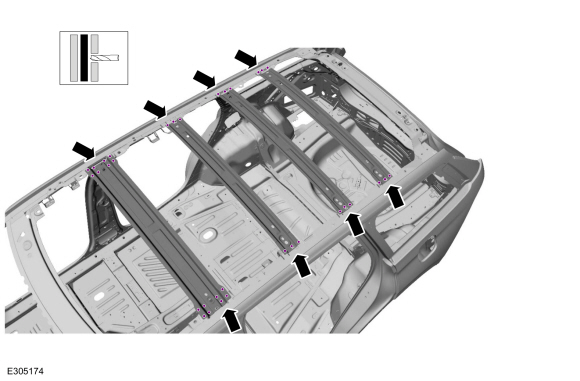

Remove the welds.
Use the General Equipment: Spot Weld Drill Bit

Remove the roof reinforcement(s).

Installation

NOTE: Factory welds may be replaced with resistance spot welds or MIG plug welds. Resistance spot welds may not be placed directly over original factory location. They must be placed adjacent to original location and equal in location and quantity.

NOTE: Vehicles equipped with a roof opening panel will use the rear most reinforcement only.

WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).

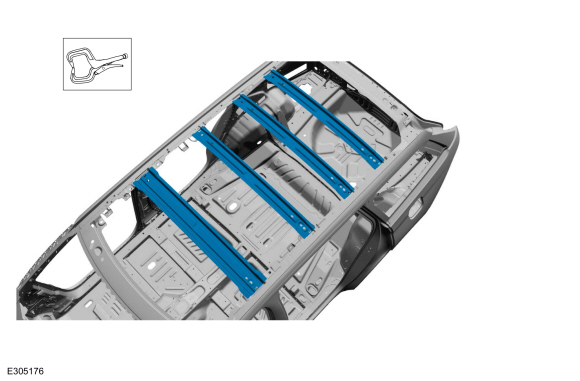

Install, properly position and clamp the roof reinforcement(s).
Use the General Equipment: Locking Pliers

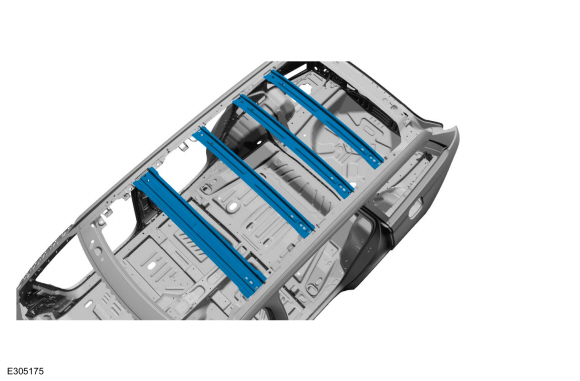

Install the welds.
Use the General Equipment: Resistance Spotwelding Equipment

Install the roof panel.
Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
Refer to: Roof Panel - Vehicles With: Roof Opening Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
