Lincoln Aviator: Side Panel Sheet Metal Repairs / Removal and Installation - Rocker Panel

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment
Spherical Cutter
Hot Air Gun
Air Body Saw
8 mm Drill Bit
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Locking Pliers

Materials

Name Specification
Seam Sealer
TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-


Removal

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: BEV (Battery Electric Vehicle), HEV (Hybrid Electric Vehicle) and PHEV (plug-in hybrid electric vehicle) contain a HVB (High Voltage Battery). Before welding near the HVB, the HVB must be removed to avoid heat damage.

NOTE: Left hand side shown, right hand side similar.

NOTE: The outer rocker panel may be sectioned at any point provided no sectioning takes place within 50mm of door hinges or restraint anchoring points. Adjust to meet repair needs.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. Restore the vehicle to manufacturer's dimensions as required.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
  1. Position aside the carpeting and wiring harness from repair area.
  1. Remove the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).
  1. Remove the fender and splash shield.
    Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  1. Remove the rear door.
    Refer to: Rear Door (501-03 Body Closures, Removal and Installation).
  1. Remove the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove the front door lower hinge and the rear door lower hinge.
  1. Remove the front and rear door weatherstrips.

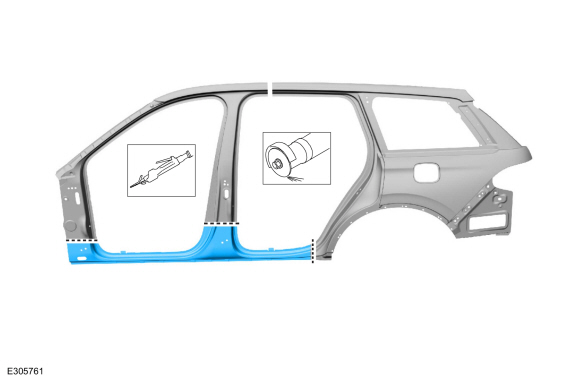

  1. Carefully cut the outer panel as indicated.
    Use the General Equipment: Spherical Cutter
    Use the General Equipment: Air Body Saw

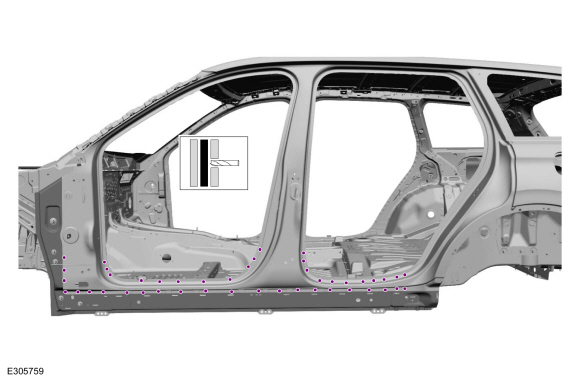

  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit

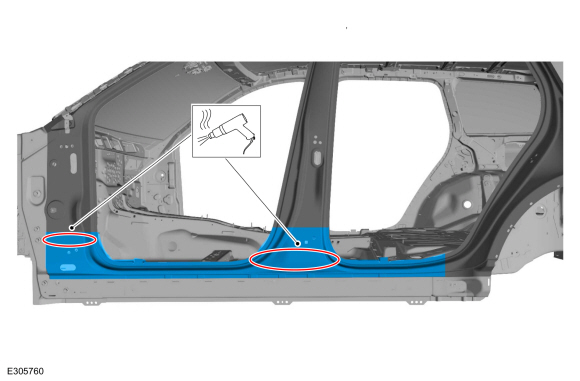

  1. NOTE: Pay particular attention to the location of adhesives and sealers to aid in installation.

    Remove the rocker outer panel.
    Use the General Equipment: Hot Air Gun

Installation

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: The high-voltage battery in a BEV (Battery Electric Vehicle), HEV (Hybrid Electric Vehicle) or PHEV (Plug-In Hybrid Electric Vehicle) can be affected and damaged by excessively high temperatures. The temperature in some body shop paint booths can exceed 60° C (140° F). Therefore, during refinishing operations, the paint booth temperature must set at or below 60° C (140° F) with a bake time of 45 minutes or less. Temperatures in excess of 60° C (140° F) or bake durations longer than 45 minutes will require the high-voltage battery be removed from the vehicle prior to placing in the paint booth.

NOTICE: EV (Electric Vehicle), HEV (Hybrid Electric Vehicle) and PHEV (Plug-In Hybrid Electric Vehicle) vehicles contain a HVB (High Voltage Battery). Before welding near the HVB, the HVB must be removed to avoid heat damage.

NOTICE: If refinishing cure temperatures exceed 60°C (140°F), the charge port light ring must be removed.

NOTE: Factory welds may be replaced with resistance spot welds or MIG (metal inert gas) plug welds. Resistance spot welds may not be placed directly over original location. They must be placed adjacent to original location and equal factory welds in quantity. MIG (metal inert gas) plug welds must equal factory welds in both location and quantity

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. Cut a section from replacement panel(s) to fit repair.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter

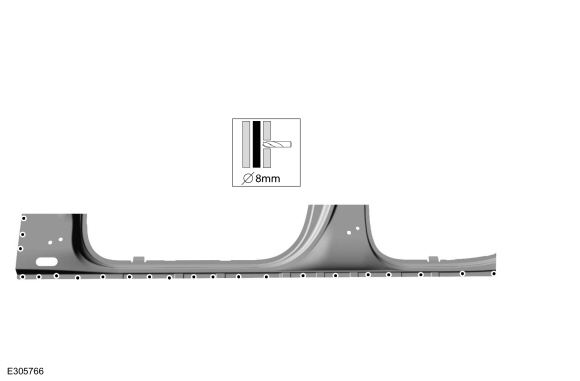

  1. Drill holes for plug welding.
    Use the General Equipment: 8 mm Drill Bit

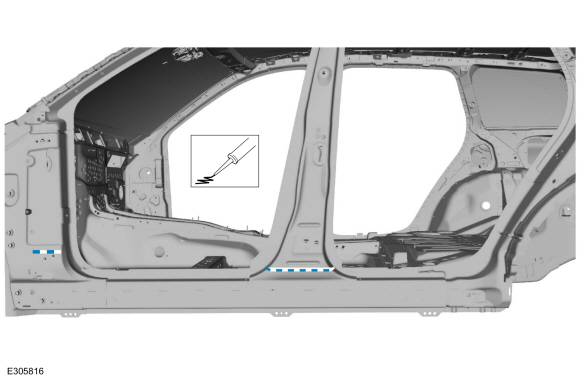

  1. NOTE: Do not apply sealer directly at MIG plug weld locations.

    Apply seam sealer to act as an NVH component.
    Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM

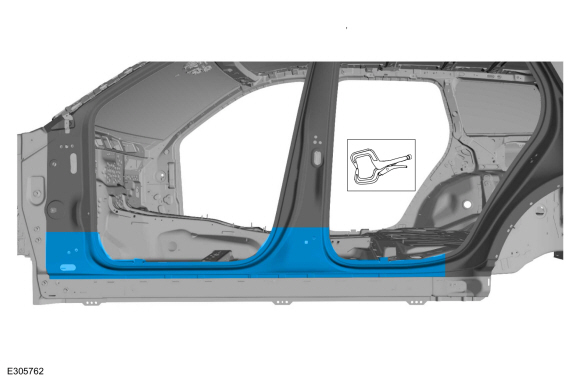

  1. Install, properly position and clamp the rocker panel.
    Use the General Equipment: Locking Pliers

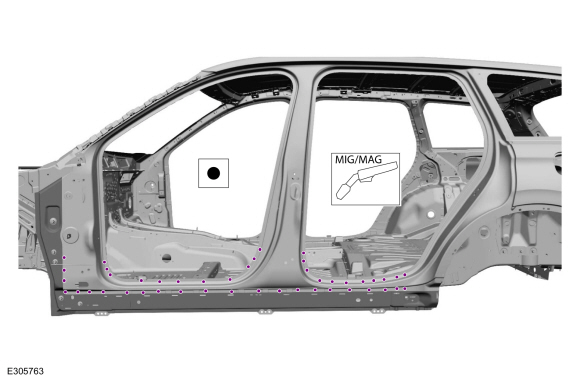

  1. Install the welds.
    Use the General Equipment: Resistance Spotwelding Equipment
    Use the General Equipment: MIG/MAG Welding Equipment

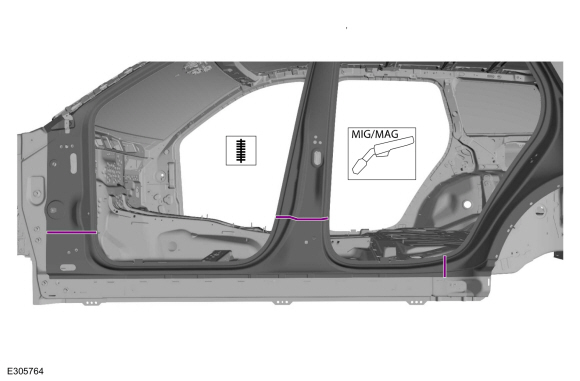

  1. Seam weld sectioning joints.
    Use the General Equipment: MIG/MAG Welding Equipment
  1. Metal finish the repair area using typical repair techniques.
  1. Seam Sealing:
    All seams must be sealed to production level.
    Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
  1. Refinish the repair area using Ford approved paint system.
  1. Restore corrosion protection.
    Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
  1. Reposition the carpeting and wiring harness.
  1. Install the fender and splash shield.
    Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

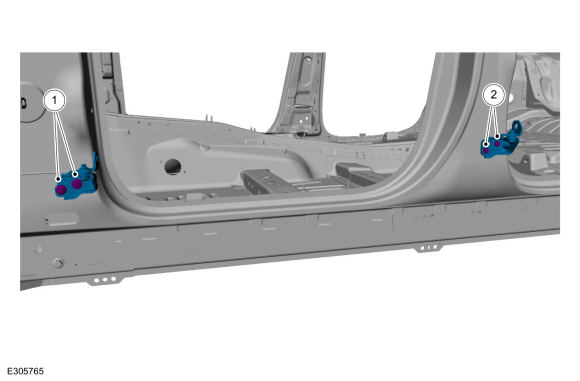

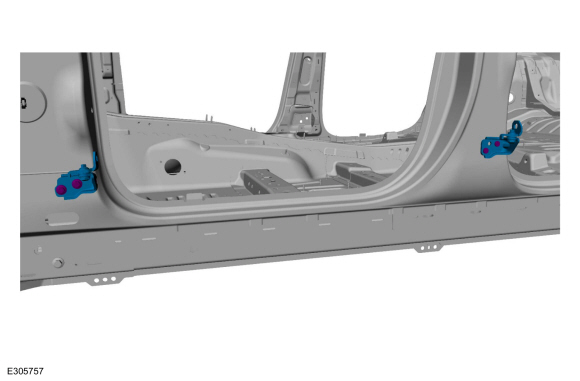

  1. Install the front door lower hinge and the rear door lower hinge.
    Torque:
      Stage 1:  22 lb.ft (30 Nm)
      Stage 2:  26 lb.ft (35 Nm)
  1. Install the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).
  1. Install the rear door.
    Refer to: Rear Door (501-03 Body Closures, Removal and Installation).
  1. Align the front and rear doors as necessary.
    Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
    Refer to: Rear Door Alignment (501-03 Body Closures, General Procedures).
  1. Install the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
