Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Running Board

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

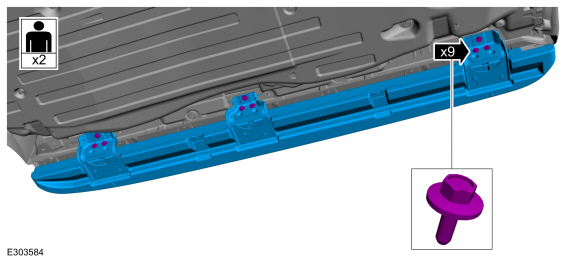

  1. NOTE: This step requires the aid of another technician.

    Remove the bolts and the running board assembly.
    Torque: 177 lb.in (20 Nm)

Installation

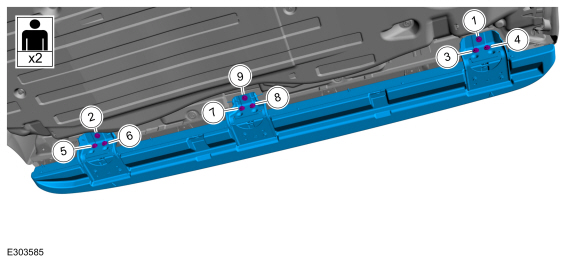

  1. NOTE: This step requires the aid of another technician.

    Install the bolts as sequences
    Torque: 177 lb.in (20 Nm)
