Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Roof Rail
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

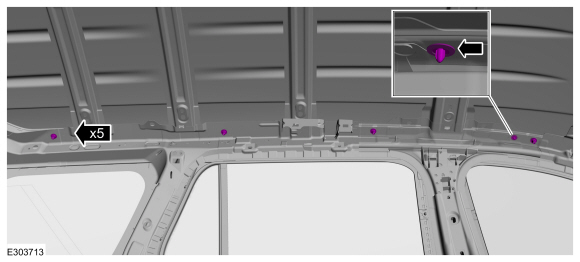

Remove the nuts and retainer clip.
Torque:
53 lb.in (6 Nm)
-

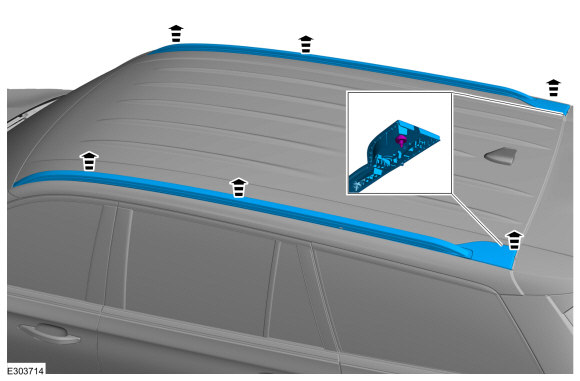

Remov the retainer clip and roof rail.
Installation
-
To install, reverse the removal procedure.
