Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Rocker Panel Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
Remove the rear quarter panel moulding from the affected side.
Refer to: Rear Quarter Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-
Remove the front fender moulding from the affected side.
Refer to: Front Fender Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

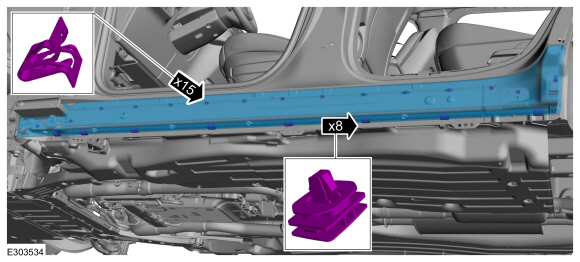

Remove the rocker panel.
Installation
-
To install, reverse the removal procedure.
