Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Rear Spoiler
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

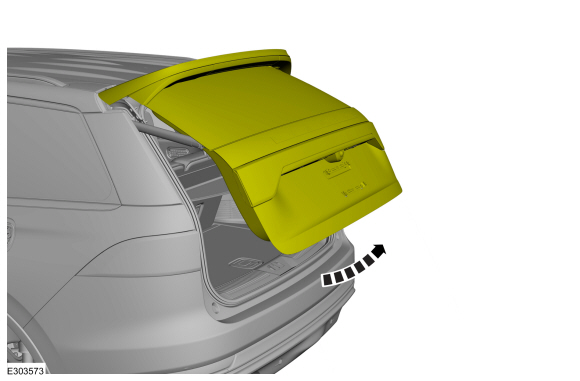

Open the rear tail gate.
-

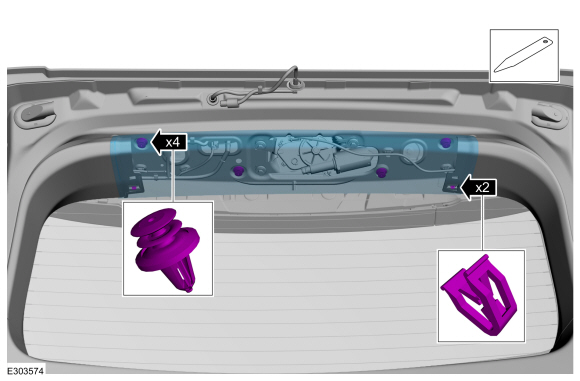

Release the clips and remove the upper liftgate trim panel.
Use the General Equipment: Interior Trim Remover
-

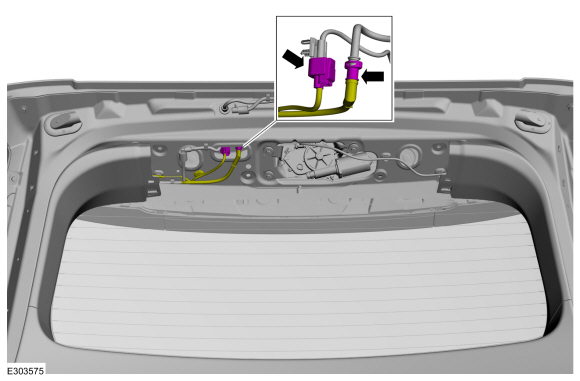

Disconnect the washer hoses and electrical connector.
-

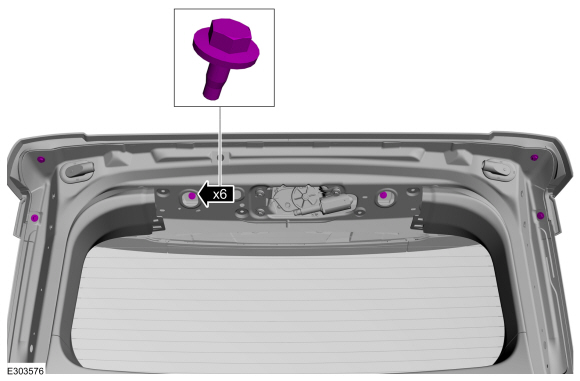

Remove the spoiler to liftgate fasteners.
Torque:
55 lb.in (6.2 Nm)
-
Remove the spoiler assembly.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Remove the screws...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Remove the rear quarter panel moulding from the affected side...
