Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Center Seat
Special Tool(s) /
General Equipment
Removal
WARNING:
The following procedure describes critical repair steps
required for correct seat component installation. Follow all notes and
steps carefully. Do not place any objects between the seat components
and the body of the vehicle, nor any objects within a joint internal to
the seat structure. Failure to follow step instructions may result in
incorrect operation of the seat components and increases the risk of
serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
-

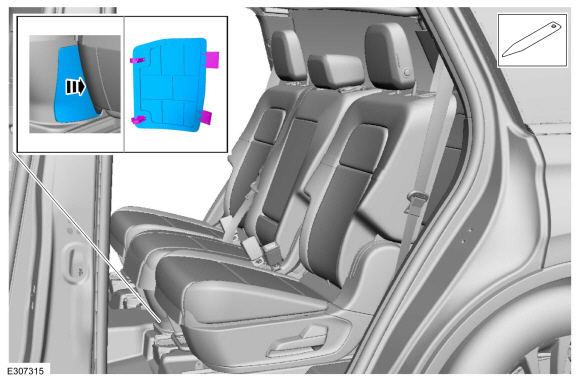

Release the tabs and remove the second row center seat LH front bolt cover.
Use the General Equipment: Interior Trim Remover
-

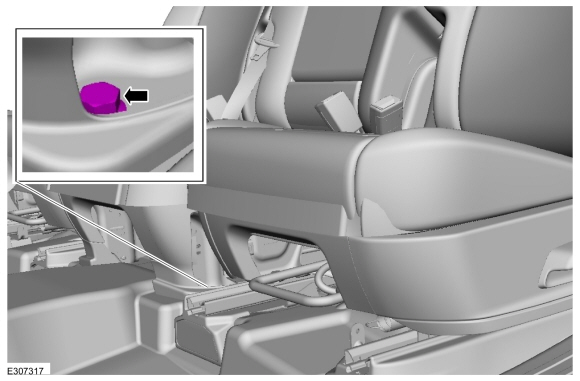

Remove the second row center seat LH front bolt.
Torque:
35 lb.ft (48 Nm)
-

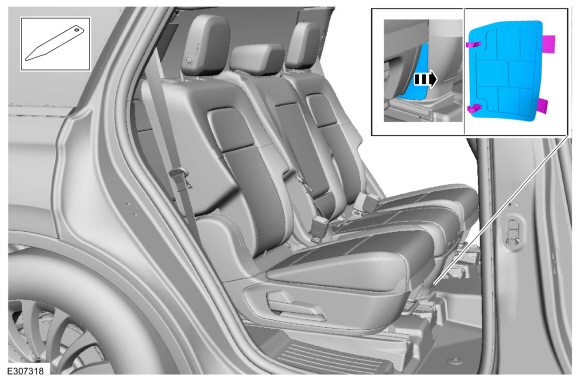

Release the tabs and remove the second row center seat RH front bolt cover.
Use the General Equipment: Interior Trim Remover
-

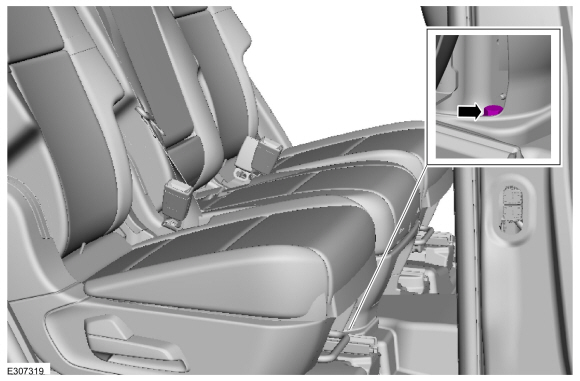

Remove the second row center seat RH front bolt.
Torque:
35 lb.ft (48 Nm)
-

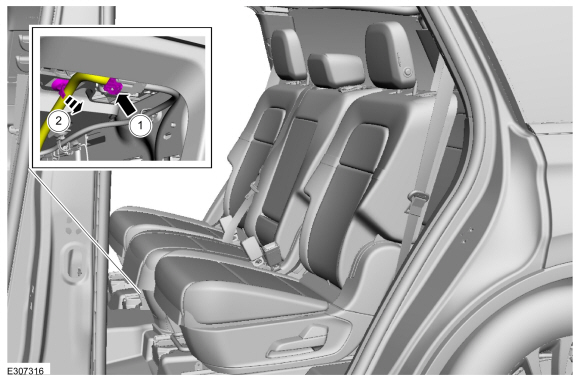

Position the second row center seat wiring harness aside.
-
Disconnect the second row center seat wiring harness electrical connector.
-
Release the second row center seat wiring harness pin-type retainer.
-

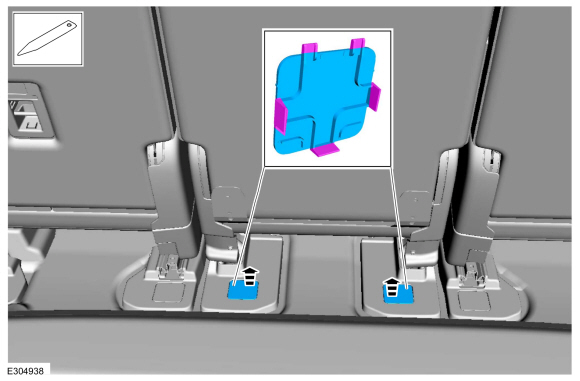

Release the tabs and remove the second row center seat rear bolt covers.
Use the General Equipment: Interior Trim Remover
-

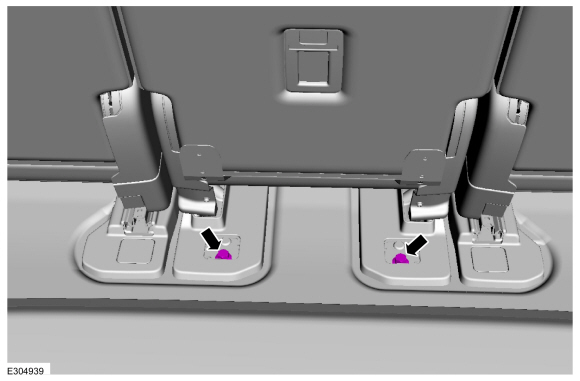

Remove the second row center seat rear bolts.
Torque:
35 lb.ft (48 Nm)
-

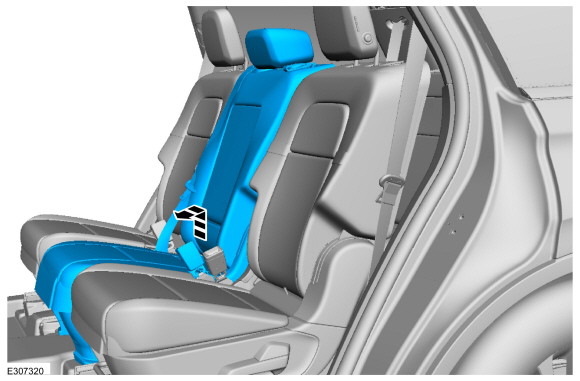

Remove the second row center seat.
Installation
-
To install, reverse the removal procedure.
