Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Driver Side Register Air Discharge Temperature Sensor

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

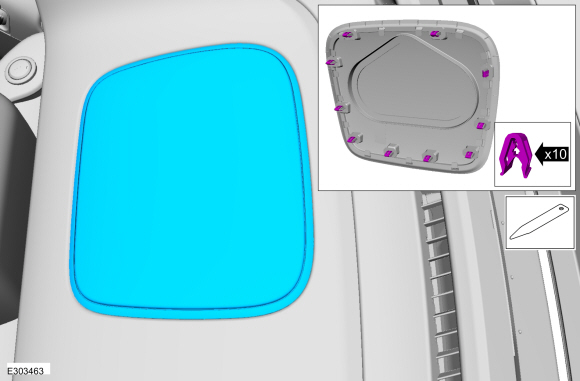

Release the clips and remove the insutment panel speaker grille.
Use the General Equipment: Interior Trim Remover

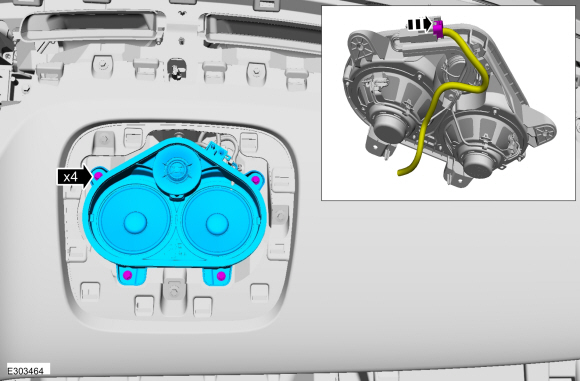

Remove the bolts and the instrument panel speaker.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)

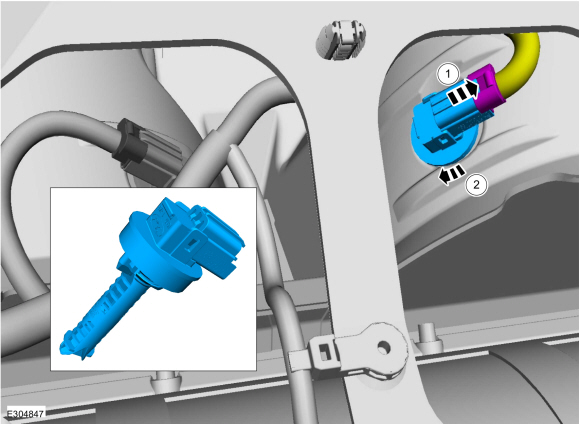

Remove the driver side register air discharge tempreature sensor.
1. Disconnect the electrical connector.
1. Remove the sensor.

Installation

To install, reverse the removal procedure.
