Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Driver Side Register
Removal
-

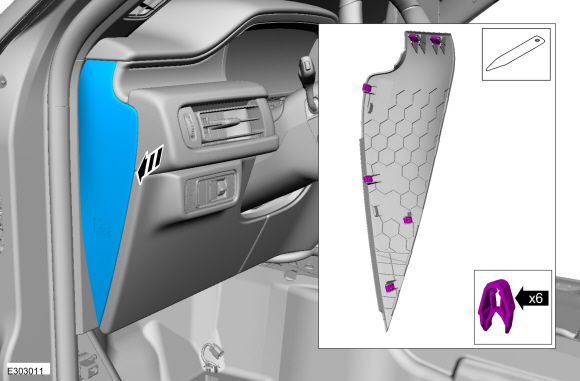

Release the clips and remove the LH instrument panel end cap.
-

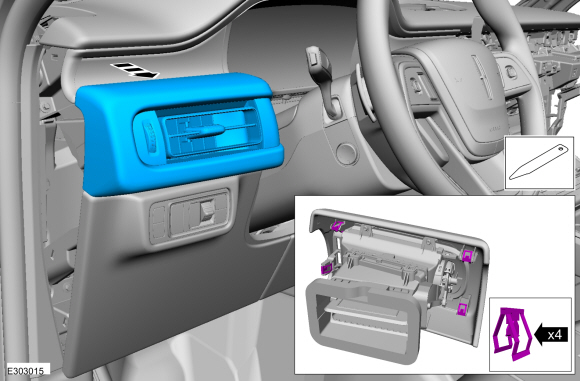

Release the clips and remove the RH instrument panel trim panel.
-

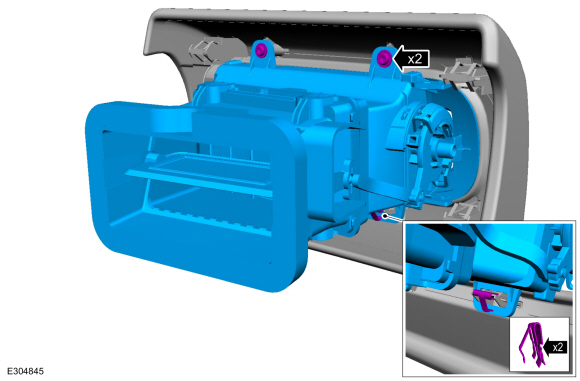

Remove the screws, release the clips and remove the driver side register assembly.
-

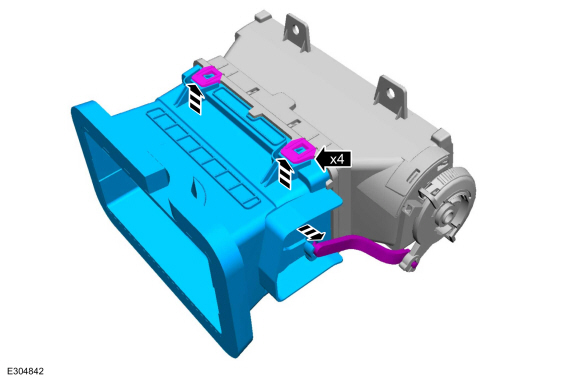

Release the tabs, remove the arm and separate the dirver side register.
Installation
-
To install, reverse the removal procedure.
Removal
Remove the driver knee airbag.
Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).
Remove the driver side register air discharge tempreature sensor...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Release the clips and remove the insutment panel speaker grille...
