Lincoln Aviator: Second Row Climate Control / Removal and Installation - Second Row Air Discharge Temperature Sensor

Description and Operation - Second Row Climate Control - System Operation and Component Description

System Operation System Diagram Item Description 1 IPC 2 GWM 3 HVAC 4 Second row air distribution door actuator 5 Second row temperature door actuator 6 Blower motor relay 7 Second row blower motor control module 8 Second row blower motor 9 FCIMB 10 RHVAC (Rear Non touch screen) 11 Second row air discharge temperature sensor 12 Second row air flow shut off door actuator 13 RACM (Rear Touch screen) 14 APIM ( FDIM Touch Screen) 15 Rear temperature sensor - Second Row 16 Rear temperature sensor - Third Row Network Message Charts   Module Network Input Messages - APIM Broadcast Message Originating Module Message Purpose Climate control button status HVAC control module This message contains the HVAC climate control settings for the touch screen display...

Removal and Installation - Second Row Air Distribution Door Actuator

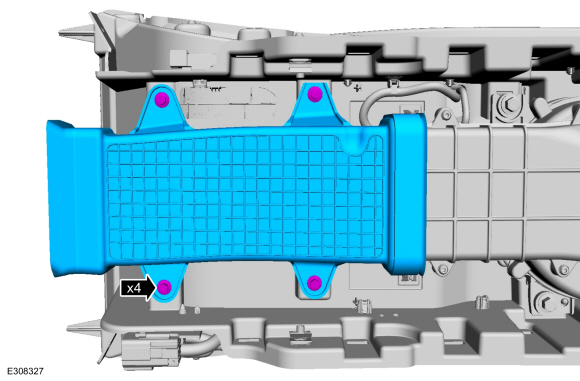

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation)...
