Lincoln Aviator 2020-2025 Service Manual / Electrical / Climate Control System / Second Row Climate Control / Removal and Installation - Second Row Air Distribution Door Actuator

Lincoln Aviator: Second Row Climate Control / Removal and Installation - Second Row Air Distribution Door Actuator

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the floor console.
    Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

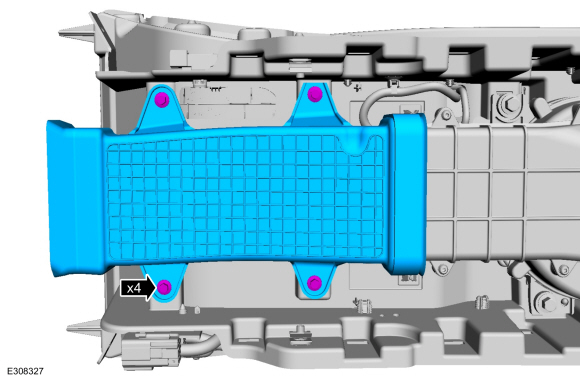

  1. Remove the bolts and the duct section.
    Torque: 25 lb.in (2.77 Nm)

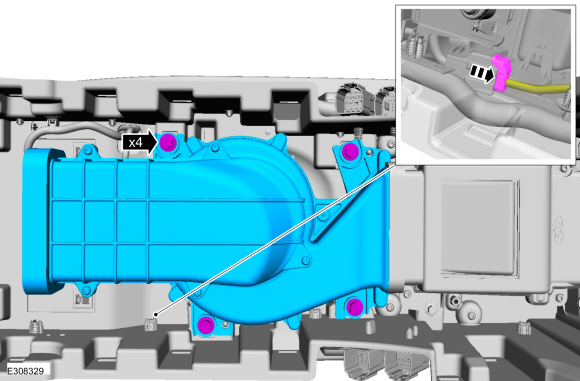

  1. Remove the bolts and the rear blower motor control module.
    • Disconnect the electrical connector.
      Torque: 71 lb.in (8.0 Nm)

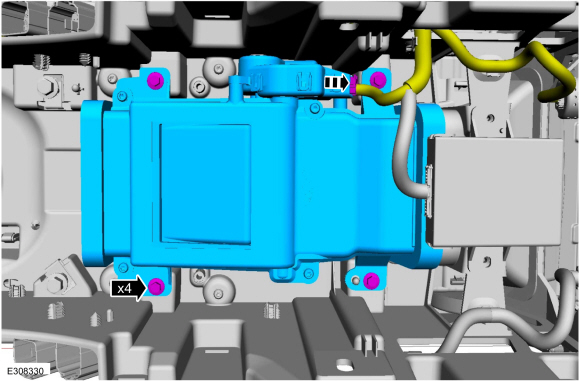

  1. Remove the bolts and the second row air distribution door assembly.
    • Disconnect the electrical connector.
      Torque: 25 lb.in (2.77 Nm)

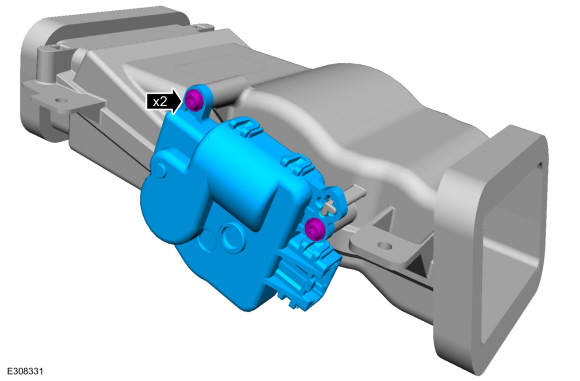

  1. Remove the screws and the second row air distribution door actuator.

Installation

  1. To install, reverse the removal procedure.
