Lincoln Aviator: Second Row Climate Control / Removal and Installation - Second Row Air Flow Shut Off Door Actuator

Removal

  1. Remove the floor console.
    Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

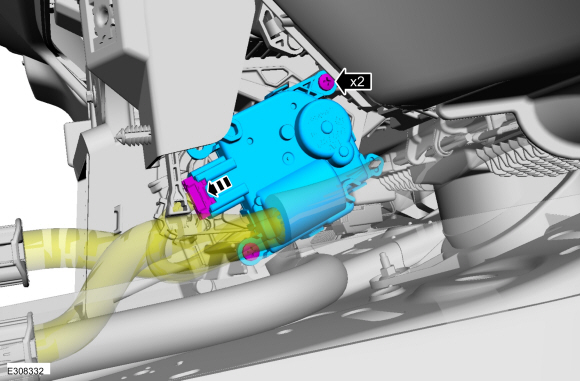

  1. Remove the screws and the second row air flow shut off door actuator.
    • Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Second Row Air Distribution Door Actuator

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation)...

    Removal and Installation - Second Row Blower Motor Control Module

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation)...
