Lincoln Aviator: Transfer Case / Removal and Installation - Transfer Case Front Output Shaft Seal

Special Tool(s) / General Equipment

205-1018
Installation Tube
205-1067
Installer, Output Shaft AWD

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the transfer case.
    Refer to: Transfer Case (307-07B Transfer Case, Removal).
  1. Remove the transfer case output shaft seal cover.

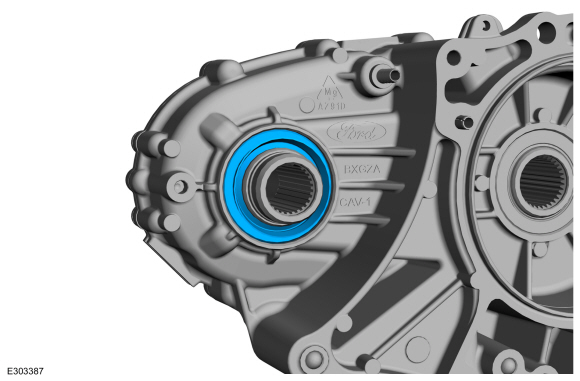

  1. Remove and discard the transfer case output shaft seal.

Installation

  1. NOTE: Apply petroleum jelly to the outer circumference of the oil seal.

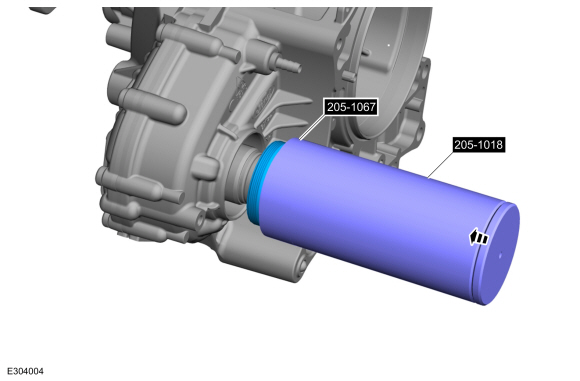

    Use Special Service Tool: 205-1067  Installer, Output Shaft AWD. , 205-1018  Installation Tube.
  1. Install the transfer case.
    Refer to: Transfer Case (307-07B Transfer Case, Installation).
