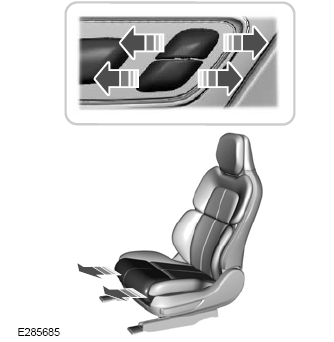

Lincoln Aviator: Power Seats / 30-Way Seat Controls

10-Way and 12-Way Seat Controls

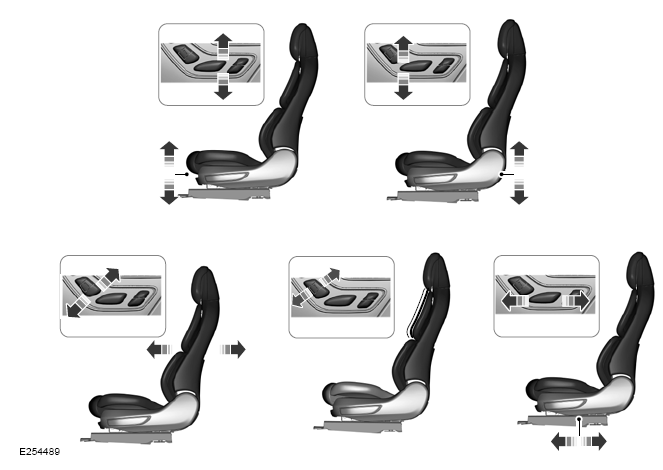

The power seat controls are on the door. Recline. Lumbar control. Memory function. Seat adjust (forward, backward, height and tilt). Press this button to access the lumbar menu on the touchscreen...

Adjusting the Multi-Contour Front Seats With Active Motion (If Equipped)

Note: The engine must be running or the vehicle must be in accessory mode to activate the seats. Note: Allow a few seconds for any selection to activate...
