Lincoln Aviator: Side and Rear Vision / Description and Operation - Blind Spot Information System - Component Location

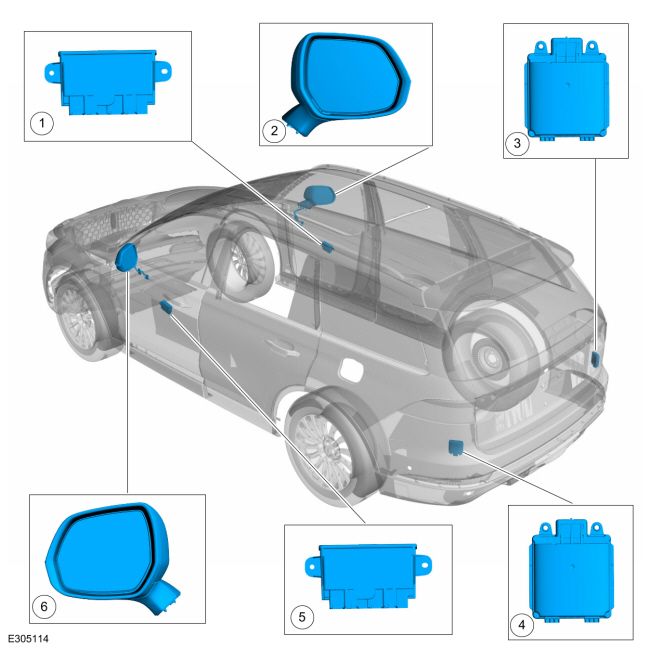

Component Location - Blind Spot Monitoring System
| Item |
Description |
| 1 |
PDM
|
| 2 |
RH exterior mirror |
| 3 |
SODR
|
| 4 |
SODL
|
| 5 |
DDM
|
| 6 |
LH exterior mirror. |
BLIS®
The BLIS®
aids the driver in assessing whether another vehicle is present within a
specific area (blind spot) to either side of the vehicle, extending
rearward approximately 6 m (20 ft) beyond the rear bumper while driving
on roads and highways...
