Lincoln Aviator: Instrumentation, Message Center and Warning Chimes / Description and Operation - Head Up Display (HUD) - Overview

Overview

The HUD provides two major purposes. It serves as a supplemental display for driver information and provides the forward collison warning to alert the driver of an impending collision. All HUD information and warnings are displayed on the windshield and can be turned on, off and setup to display individual features using the RH steering wheel switch.

For additional information about the forward collision warning,
Refer to: Collision Warning and Collision Avoidance System - System Operation and Component Description (419-03C Collision Warning and Collision Avoidance System, Description and Operation).

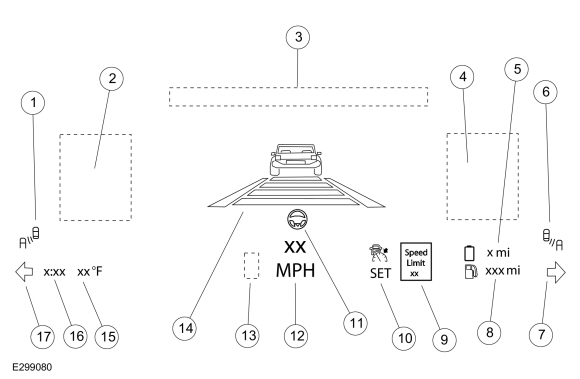

HUD

Item Description
1

NOTE: The LH BLIS indication only appears when the turn signal is activated.

LH BLIS indicator
2 Navigation display area
3 Phone and audio information display area
4
  • HUD adjustments
  • Stop and go indication
5 Electric Vehicle (EV) drive range
6

NOTE: The RH BLIS indication only appears when the turn signal is activated.

  • RH BLIS indication
7 RH turn signal indication
8 DTE and low fuel indication
9 Speed limit sign display
10 Cruise control/ACC indicator and set speed display
11 Lane centering assist indication
12 Digital speedometer
13 Transmission range indication
14
  • ACC follow and gap setting display
  • Lane keep assist and lane departure display
  • Distance alert indication display
15 Outside air temperature display
16 Clock display
17 LH turn signal indication

The following items displayed in the HUD can be turned on or off using the setup menu.

  • Fuel information, time and outside air temperature.
  • Cruise control and lane keeping system
    • cruise control only
    • cruise control and lane keeping system

The HUD setup menu allows the driver to set up the following:

  • HUD brightness (level 1-13)
  • HUD position
    • vertical
    • image rotation

When an item that is displayed in the IPC is selected on in the HUD, the selected item is turned off in the IPC, except for the speedometer, which is reduced to a minimized display format. For all details about the HUD functionality and the display setup, refer to the Owner's Literature.

The HUD displays the following information:

  • Active driver assist system
    • ACC
    • Lane keeping
    • Distance alert
    • Lane centering assist
    • Speed sign
    • Stop and go
  • Audio information
  • BLIS
  • Clock
  • Digital speedometer
  • DTE
  • Electric Vehicle (EV) drive range
  • Forward collision warning
  • Low fuel indication
  • Navigation
  • Outside air temparture
  • Phone call information
  • Set speed limit
  • Speed sign
  • Transmission range selection indication
  • LH and RH turn

    Instrumentation, Message Center and Warning Chimes

    ..

    Description and Operation - Head Up Display (HUD) - System Operation and Component Description

    System Operation System Diagram Item Description 1 BCM 2 GWM 3 SODR 4 SODL 5 DSM 6 PCM 7 HVAC module 8 RH steering wheel switch 9 HUD module 10 Rain sensor 11 IPC 12 ACM 13 Displays 14 Adaptive cruise control 15 DTE/Low fuel indication 16 Forward collision warning 17 Clock/outside air temperature 18 Electric Vehicle (EV) range indication 19 Active driver assist system display 20 Digital speedometer/speed sign display 21 BLIS 22 LH 23 RH 24 Turn indicators 25 Navigation 26 APIM 27 SCCM 28 IPMA 29 SIMA Network Message Chart   Module Network Input Messages - HUD Module Broadcast Message Originating Module Message Purpose Adaptive cruise control follow mode display   IPMA Input used to control the ACC component in the active driver assist system display...
