Lincoln Aviator 2020-2026 Service Manual / Electrical / Climate Control System / Rear Climate Control / Description and Operation - Rear Climate Control - Component Location

Lincoln Aviator: Rear Climate Control / Description and Operation - Rear Climate Control - Component Location

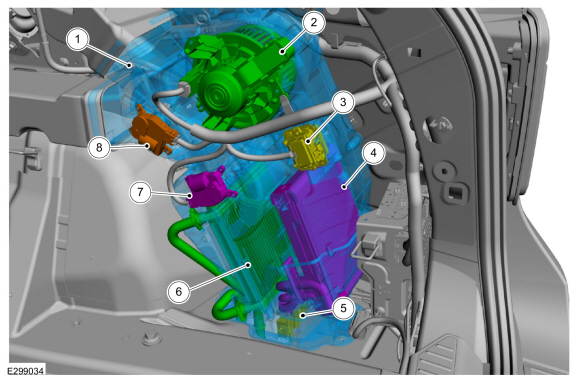

Item Description
1 Rear climate control housing
2 Rear blower motor
3 Rear blower motor speed control
4 Rear evaporator
5 Rear thermostatic expansion valve
6 Rear heater core
7 Rear temperature door actuator
8 Rear air distribution door actuator

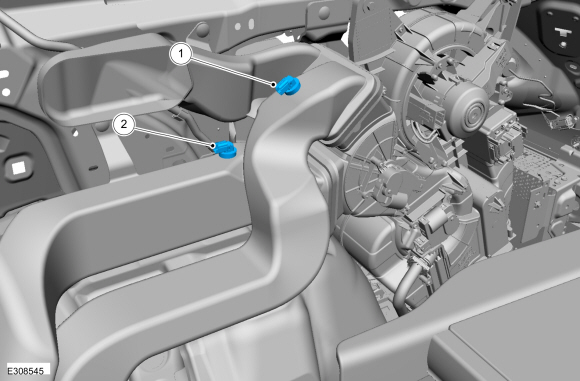

Item Description
1 Rear air discharge temperature sensor
2 Rear footwell air discharge temperature sensor

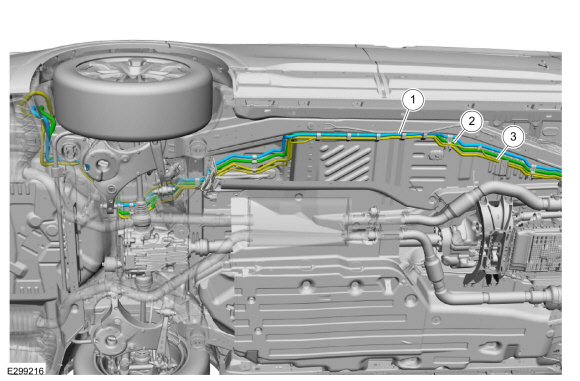

Item Description
1 Rear heater core outlet line
2 Rear heater core inlet line
3 Rear evaporator rear outlet and inlet line

    Rear Climate Control

    ..
