Lincoln Aviator: Rear Suspension / Description and Operation - Rear Suspension - Component Location

Rear Suspension

..

Description and Operation - Rear Suspension - Overview

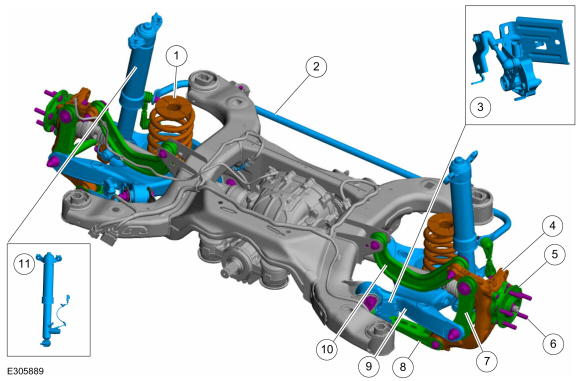

Overview The rear suspension consists of the following components: Coil springs Lower arm and bushing assemblies Stabilizer bar and links Toe links Upper arms Lower arm vertical links Wheel bearing and wheel hub assemblies Wheel knuckles Wheel studs Suspension height sensor Dynamically controlled shock absorbers Refer to: Vehicle Dynamic Suspension - Vehicles With: Air Suspension - Component Location (204-05 Vehicle Dynamic Suspension, Description and Operation)...
