Lincoln Aviator 2020-2026 Service Manual / Electrical / Climate Control System / Supplemental Climate Control / Description and Operation - Supplemental Climate Control - Component Location

Lincoln Aviator: Supplemental Climate Control / Description and Operation - Supplemental Climate Control - Component Location

3.0L Ecoboost


Item Description
1 Cabin heater coolant pump

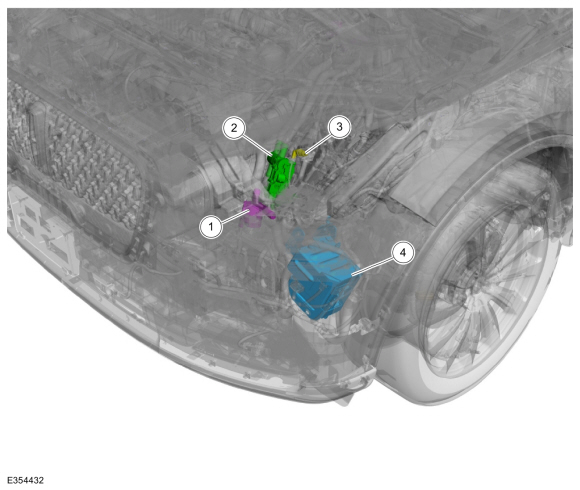

3.0L Ecoboost - Hybrid


Item Description
1 Cabin heater coolant pump
2 Cabin heater coolant diverter valve
3 Cabin heater coolant temperature sensor
4 Cabin coolant heater

3.0L Ecoboost - Hybrid


Item Description
1 Rear evaporator shutoff valve
2 Rear heater core shutoff valve
3 High voltage battery coolant cooler
