Lincoln Aviator: Handles, Locks, Latches and Entry Systems / General Procedures - Door Latch Lubrication
Special Tool(s) /
General Equipment
Materials
Name |
Specification |
Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B
|
Activation
NOTE:
Typical left front door shown, others similar.
-

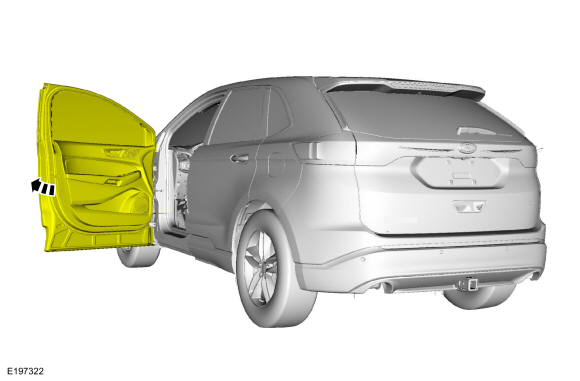

Open the door.
-

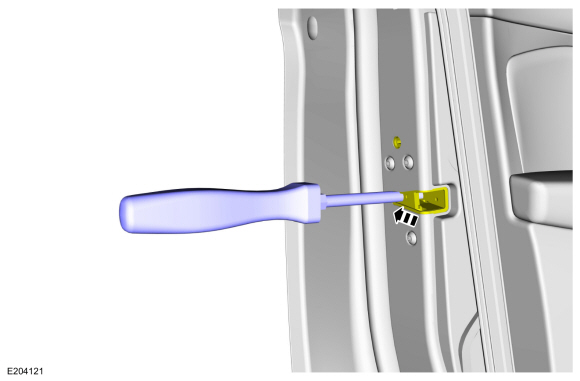

Using a flat blade screwdriver, fully close the latch (2 clicks).
Use the General Equipment: Flat-Bladed Screwdriver
-
NOTICE:
Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

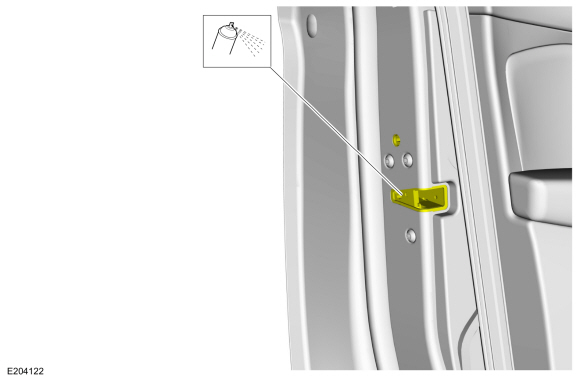

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.
Material: Motorcraft® Multi-Purpose Grease Spray
/ XL-5-A
(ESB-M1C93-B)
-
NOTE:
Some exterior door handles are operated mechanically
while other exterior door handles are operated electronically.

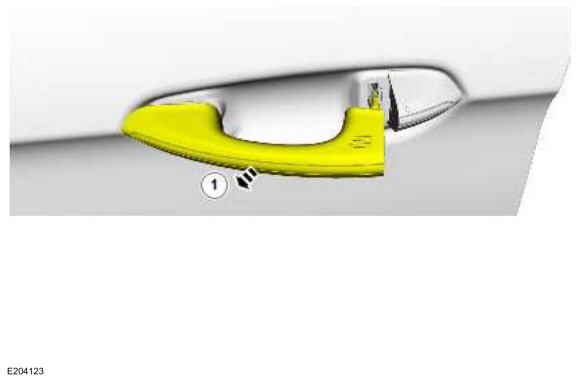

Open the latch using the exterior door handle.
-

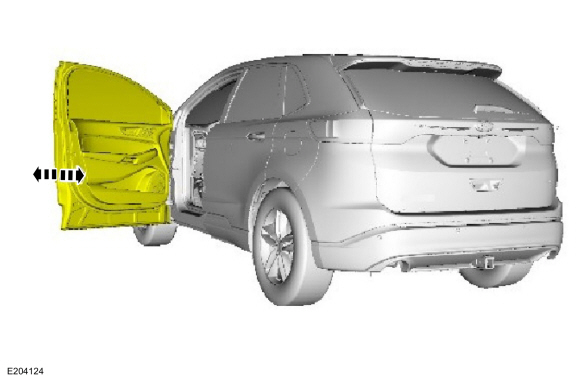

Open and close the door several times to circulate the lubricant inside the latch.
-
Open the door.
-

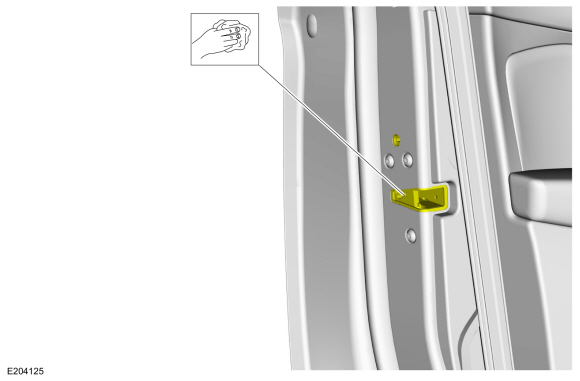

Wipe off any excess grease.
Special Tool(s) /
General Equipment
Flat-Bladed Screwdriver
Interior Trim Remover
Activation
Remove the liftgate latch access cover from the center of the liftgate trim panel...
Other information:
System Operation
System Diagram - Networked Illumination - Doors
NOTE:
Not all vehicles come equipped with all the items listed
below. The door latch modules are identified as follows:
Left front door - DCME
Right front door - DCMF
Left rear door - DCMG
Right rear door - DCMH
Item
Description
1
MS-CAN
2
DCME
3
Light sensor
4
DCMF
5
DCMH
6
DDM
7
PDM
8
RF door lock switch
9
RF door window control switch
10
LF door window control switch
11
RR door window control switch
12
LR door window control switch
13
LF door lock switch
14
RR door lock switch
15
LR door lock switch
16
GWM
17
DCMG
18
LH front interior door latch switch
19
RH front interior door latch switch
20
LH rear interior door latch switch
21
RH rear interior door latch switch
22
LIN
23
LIN
24
HS-CAN1
25
BCM
26
Dimmer switch
27
Headlamp switch
System Diagram - Networked Illumination - Steering Wheel Switches
Item
Description
1
Light sensor
2
RH lower steering wheel switch
3
RH upper steering wheel switch
4
LH lower steering wheel switch
5
LH upper steering wheel switch
6
SIMA
7
Upshift paddle switch
8
Downshift paddle switch
9
HS-CAN2
10
GWM
11
HS-CAN1
12
LIN
13
BCM
14
Dimmer switch
15
Headlamp switch
System Diagram - Networked Illumination - Other Modules
Item
Description
1
FCIM
2
APIM
3
Light sensor
4
ACM
5
IPC
6
FDIM
7
without Touchscreen
8
FCDIM
9
RHVAC
10
RACM
11
LIN
12
HS-CAN1
13
MS-CAN
14
HS-CAN3
15
GWM
16
Dimmer switch
17
Headlamp switch
18
BCM
Network Message Chart
Module Network Input Messages - ACM, APIM, DCME, DCMF, DCMG, DCMH, DDM, FCIM, RACM, RHVAC, SIMA, GWM, IPC and PDM...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the FDIM
Refer to: Front Display Interface Module (FDIM) (415-00 Information and Entertainment System - General Information, Removal and Installation)...
