Lincoln Aviator: Supplemental Climate Control / Removal and Installation - Rear Heater Core Shutoff Valve (RHSOV)
Special Tool(s) /
General Equipment
Hose Clamp(s) |
Hose Clamp Remover/Installer |
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Drain the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
-

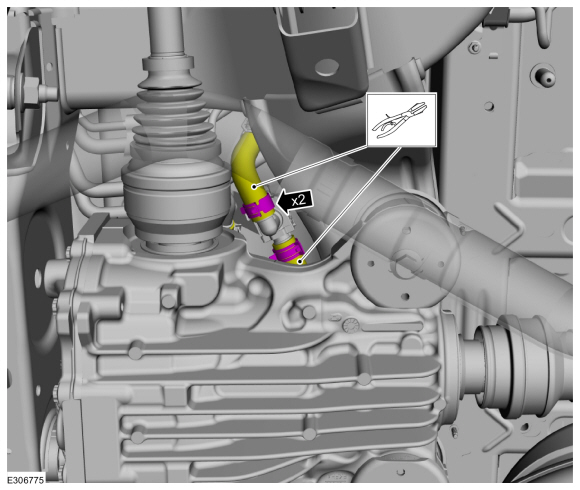

Release the clamps and position aside the coolant lines.
Use the General Equipment: Hose Clamp(s)
Use the General Equipment: Hose Clamp Remover/Installer
-
-

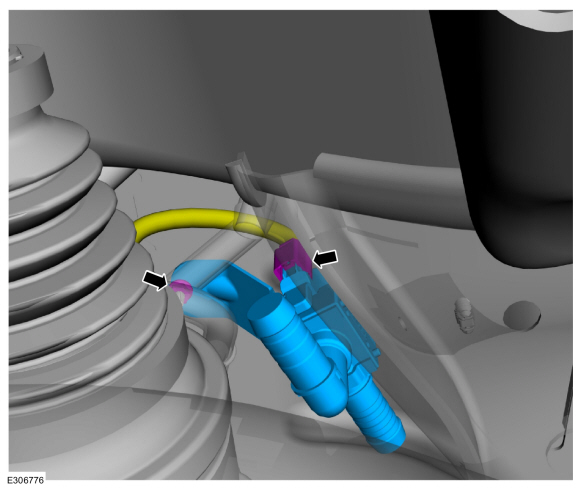

Disconnect the electrical connector.
-
Remove the retainer and the RHSOV.
Torque:
80 lb.in (9 Nm)
Installation
-
To install, reverse the removal procedure.
-
Fill and bleed the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
Removal
NOTE:
The rear evaporator shutoff valve is available only as part of the rear evaporator.
Remove the rear evaporator.
Refer to: Rear Evaporator (412-02A Rear Climate Control, Removal and Installation)...
