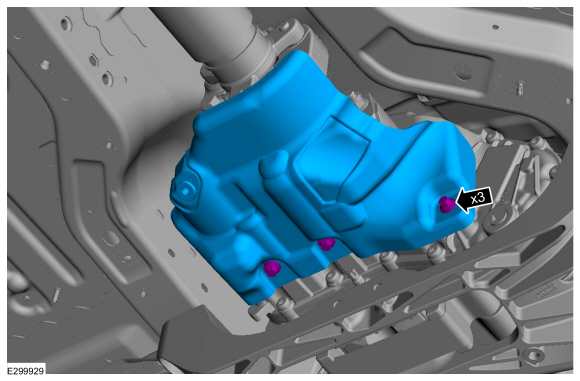

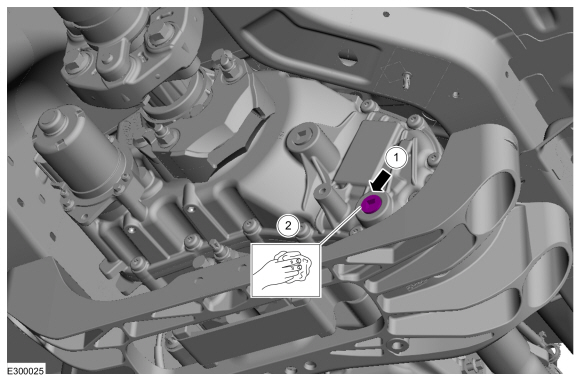

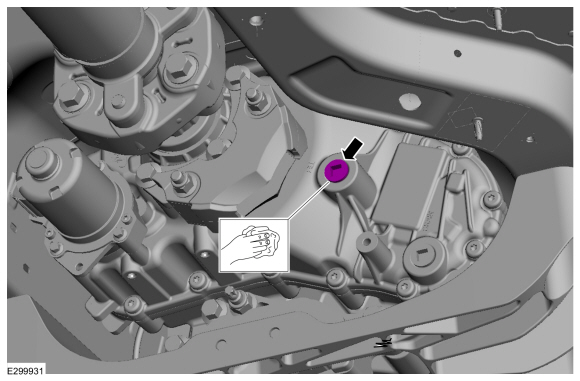

Lincoln Aviator: Transfer Case / General Procedures - Transfer Case Draining and Filling

Description and Operation - Transfer Case - Overview

Authoring Template Transfer case The Transfer Case is a gearbox that attaches to the output shaft of the transmission through a splined input at the transfer case...

General Procedures - Transfer Case Fluid Level Check

Activation Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). NOTE: Make sure that the vehicle is standing on a level surface...
