Transfer case

The Transfer Case is a gearbox that attaches to the output shaft of the transmission through a splined input at the transfer case. Torque from the transmission is transferred to the rear driveshaft through the transfer case mainshaft. When torque to the front driveshaft is required it is transferred through a multi plate wet clutch and chain drive arrangement to the front output shaft of the transfer case.

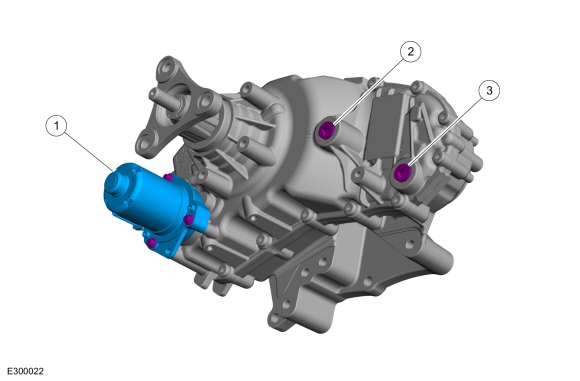

Transfer case components


Item Description
1 Transfer case clutch actuator
2 Fill plug
3 Drain plug

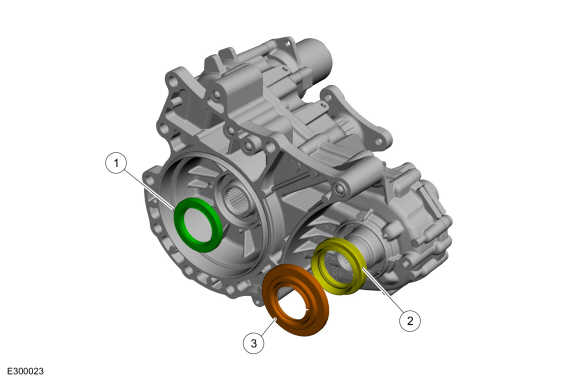

Transfer case components


Item Description
1 Transfer case input shaft seal
1 Transfer case oil seal
1 Dust cover

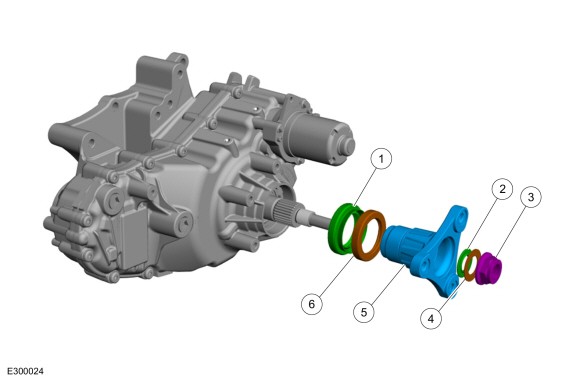

Output Shaft internal components


Item Description
1 Output shaft seal
2 Ring seal
3 Flange lock nut
4 Spacer
5 Output shaft flange
6 Dust cover

    Specifications

      Lubricants, Fluids, Sealers and Adhesives Item Specification Transfer case fluid   Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV, )   Capacities   Liters Transfer case - Service fill 1...

    General Procedures - Transfer Case Draining and Filling

    Activation With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...
