Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Low Voltage Differential Signalling (LVDS) Cable
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the FDIM
Refer to: Front Display Interface Module (FDIM) (415-00 Information and Entertainment System - General Information, Removal and Installation).
-

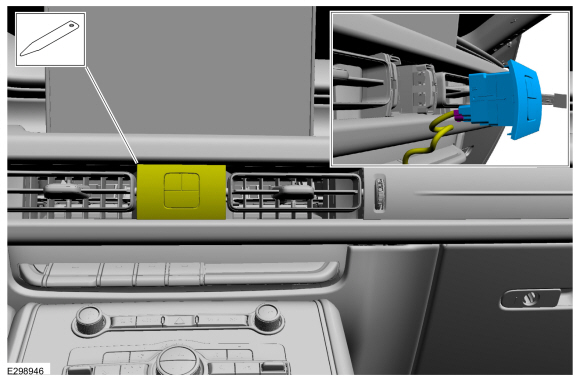

Position the park aid switch out, disconnect the electrical connector and remove the park aid switch assembly.
Use the General Equipment: Interior Trim Remover
-

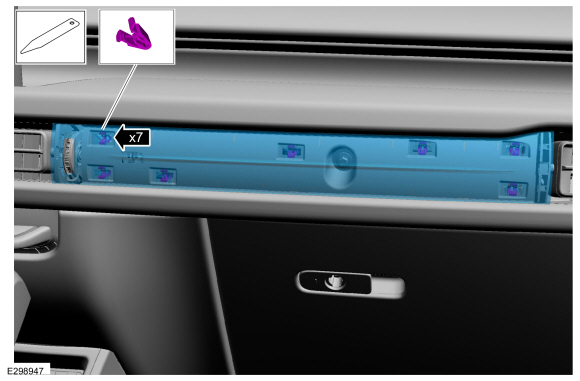

Release the clips and remove the RH center trim panel.
Use the General Equipment: Interior Trim Remover
-

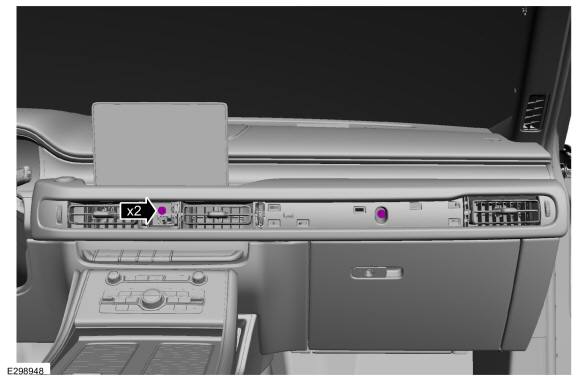

Remove the screws
-
Release the clips and position the center instrument panel trim forward.
Use the General Equipment: Interior Trim Remover
-
Disconnect the electrical connector and remove the center instrument panel trim.
-
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
-

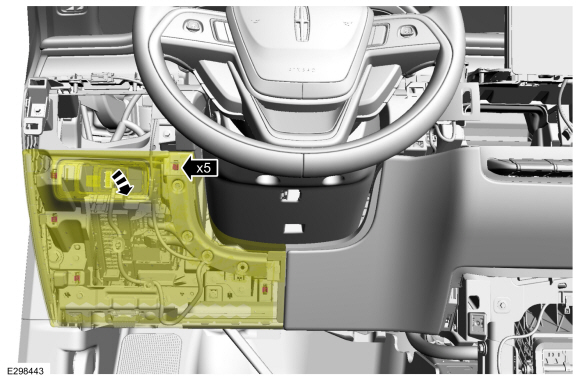

Release the clips and position down the LH instrument panel steering column trim panel.
-

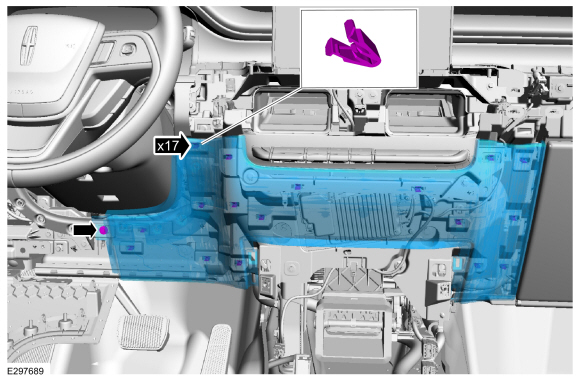

Remove the screw, release the clips and remove the lower center instrument panel trim panel.
-

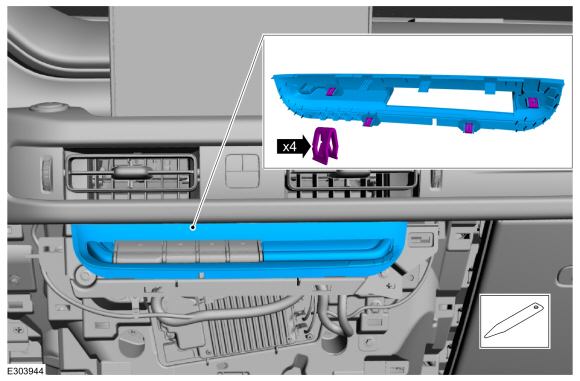

Release the clips and remove the TRCM bezel.
Use the General Equipment: Interior Trim Remover
-

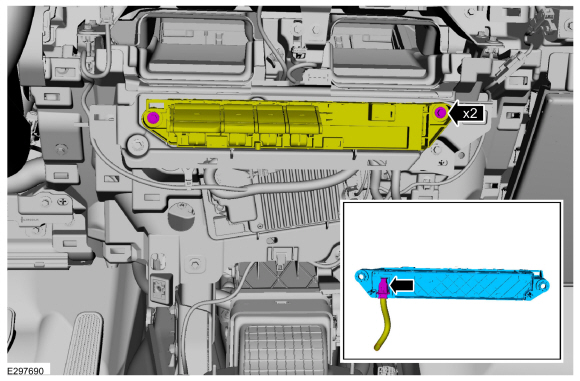

Remove the screws, disconnect the electrical connector and remove the TRCM.
-

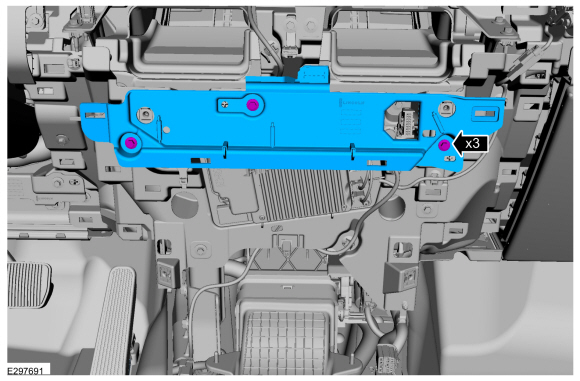

Remove the screws and the center instrument panel bracket.
Torque:
53 lb.in (6 Nm)
-

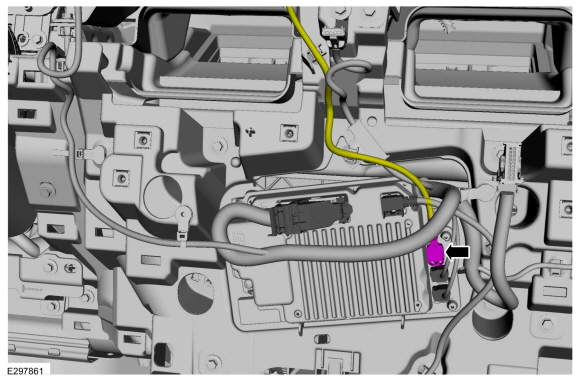

Disconnect the LVDS connector.
-

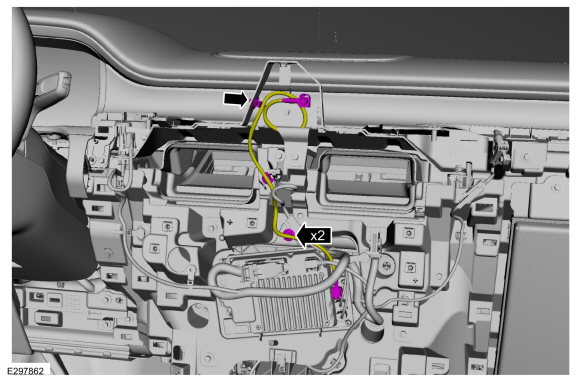

Separate the wiring guides and remove the LVDS cable.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.

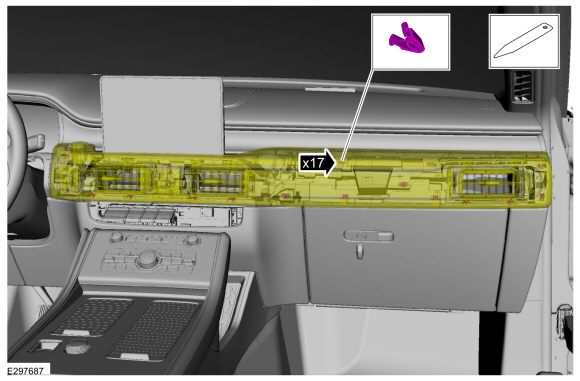

Release the clips and remove the instrument panel center speaker grille...
