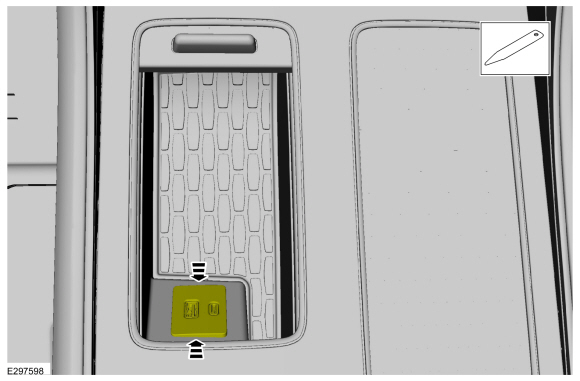

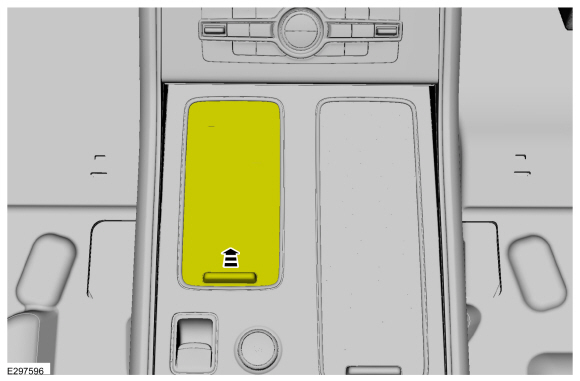

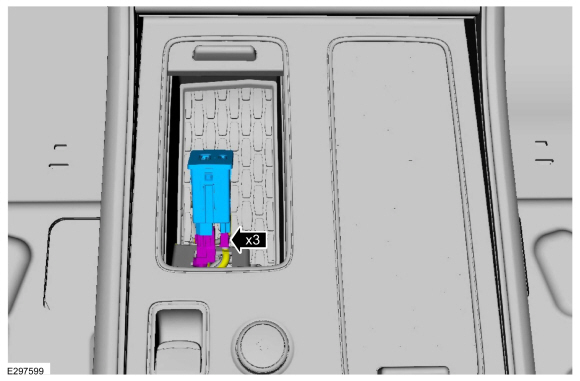

Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Media Hub

Removal and Installation - Low Voltage Differential Signalling (LVDS) Cable

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details...

Removal and Installation - Overhead Speaker

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: LH front speaker is shown, all others are similar. Lower the headliner...

Other information:

Lincoln Aviator 2020-2025 Service Manual: Diagnosis and Testing - Electronic Throttle Control System

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   PCM P0068:00 MAP / MAF - Throttle Position Correlation: No Sub Type Information   GO to Pinpoint Test DV   PCM P0120:00 Throttle / Pedal Position Sensor / Switch A Circuit: No Sub Type Information   GO to Pinpoint Test DV   PCM P0121:00 Throttle/Pedal Position Sensor/Switch A Circuit Range/Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P0122:00 Throttle/Pedal Position Sensor/Switch A Circuit Low: No Sub Type Information   GO to Pinpoint Test DV   PCM P0123:00 Throttle/Pedal Position Sensor/Switch A Circuit High: No Sub Type Information   GO to Pinpoint Test DV   PCM P0124:00 Throttle/Pedal Position Sensor/Switch A Intermittent: No Sub Type Information   GO to Pinpoint Test DV   PCM P0221:00 Throttle/Pedal Position Sensor/Switch B Circuit Range/Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P0222:00 Throttle/Pedal Position Sensor/Switch B Circuit Low: No Sub Type Information   GO to Pinpoint Test DV   PCM P0223:00 Throttle/Pedal Position Sensor/Switch B Circuit High: No Sub Type Information   GO to Pinpoint Test DV   PCM P0600:00 Serial Communication Link: No Sub Type Information   GO to Pinpoint Test QE   PCM P060A:00 Internal Control Module Monitoring Processor Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P060B:00 Internal Control Module A/D Processing Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P060C:00 Internal Control Module Main Processor Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P061A:00 Internal Control Module Torque Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P061B:00 Internal Control Module Torque Calculation Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P061C:00 Internal Control Module Engine RPM Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P061D:00 Internal Control Module Engine Air Mass Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P061F:00 Internal Control Module Throttle Actuator Controller Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P062B:00 Internal Control Module Fuel Injector Control Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P062C:00 Internal Control Module Vehicle Speed Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P0C2F:00 Internal Control Module Drive Motor/Generator-Engine Speed Sensor Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P1124:00 Throttle Position Sensor A Out Of Self Test Range: No Sub Type Information   GO to Pinpoint Test DV   PCM P1584:00 Throttle Control Detected ETB Malfunction: No Sub Type Information   GO to Pinpoint Test DV   PCM P1588:00 Throttle Control Detected Loss Of Return Spring: No Sub Type Information   GO to Pinpoint Test DV   PCM P162D:00 Internal Control Module Cruise Control Performance: No Sub Type Information   GO to Pinpoint Test QE   PCM P1674:00 Control Module Software Corrupted: No Sub Type Information   GO to Pinpoint Test QE   PCM P2100:00 Throttle Actuator A Control Motor Circuit / Open: No Sub Type Information   GO to Pinpoint Test DV   PCM P2101:00 Throttle Actuator A Control Motor Circuit Range/Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P2107:00 Throttle Actuator A Control Module Processor: No Sub Type Information   GO to Pinpoint Test DV   PCM P2109:00 Throttle/Pedal Position Sensor A Minimum Stop Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P2111:00 Throttle Actuator A Control System - Stuck Open: No Sub Type Information   GO to Pinpoint Test DV   PCM P2112:00 Throttle Actuator A Control System - Stuck Closed: No Sub Type Information   GO to Pinpoint Test DV   PCM P2118:00 Throttle Actuator A Control Motor Current Range / Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P2119:00 Throttle Actuator A Control Throttle Body Range/Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P2135:00 Throttle/Pedal Position Sensor/Switch A/B Voltage Correlation: No Sub Type Information   GO to Pinpoint Test DV   PCM P2163:00 Throttle/Pedal Position Sensor A Maximum Stop Performance: No Sub Type Information   GO to Pinpoint Test DV   PCM P2176:00 Throttle Actuator A Control System - Idle Position Not Learned: No Sub Type Information   GO to Pinpoint Test DV   PCM U0300:00 Internal Control Module Software Incompatibility: No Sub Type Information   GO to Pinpoint Test QE   PCM U0606:00 Lost Communication With Throttle/Pedal Position Sensor/Switch A: No Sub Type Information   GO to Pinpoint Test DV   PCM U210F:00 Throttle/Pedal Position Sensor/Switch A Communication Circuit Low: No Sub Type Information   GO to Pinpoint Test DV   PCM U2110:00 Throttle/Pedal Position Sensor/Switch A Communication Circuit High: No Sub Type Information   GO to Pinpoint Test DV Global Customer Symptom Code (GCSC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

Lincoln Aviator 2020-2025 Service Manual: Description and Operation - Intake Air Distribution and Filtering - Overview

Overview The air intake system cleans intake air with a replaceable, dry-type engine Air Cleaner (ACL) element made of treated, pleated paper. A new Air Cleaner (ACL) element must be installed periodically as scheduled. Engine performance and fuel economy are adversely affected when maximum restriction of the Air Cleaner (ACL) element is reached...
