Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Instrument Panel Center Speaker

Removal

NOTE: Removal steps in this procedure may contain installation details.

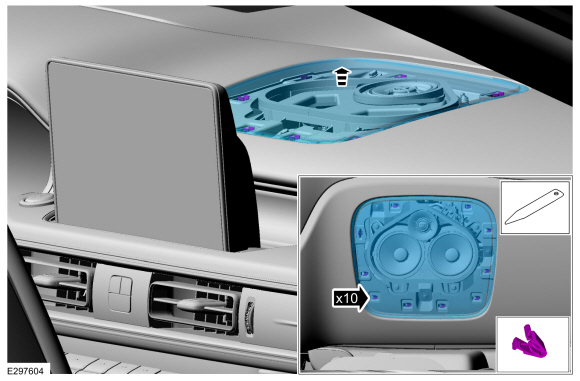

  1. Release the clips and remove the instrument panel center speaker grille.

Vehicles equipped with 14 speaker audio system

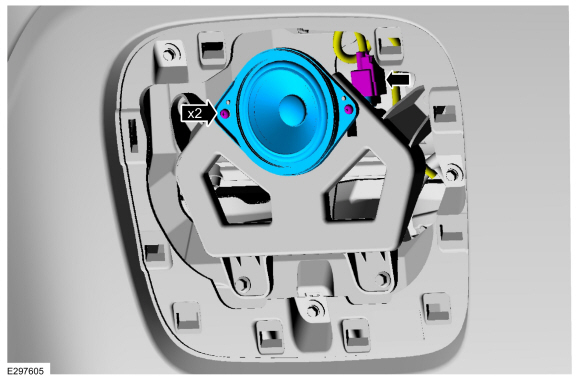

  1. Remove the screws, disconnect the electrical connector and remove the instrument panel center speaker.

Vehicles equipped with 24 speaker audio system

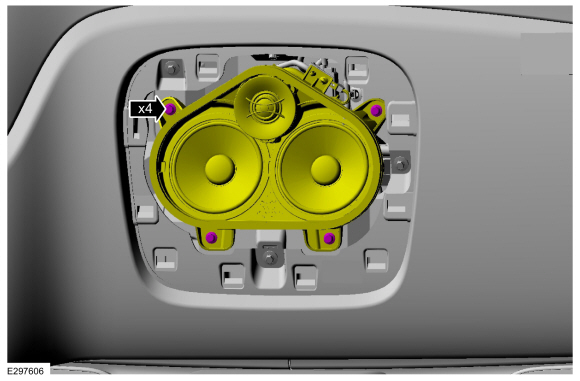

  1. Remove the screws, and position the instrument panel center speaker up.

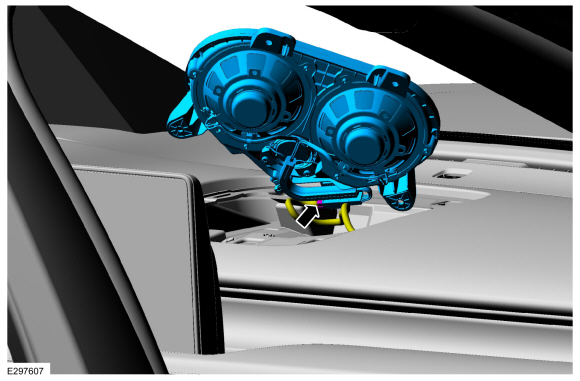

  1. Disconnect the electrical connector and remove the speaker assembly.

Installation

  1. To install, reverse the removal procedure.
