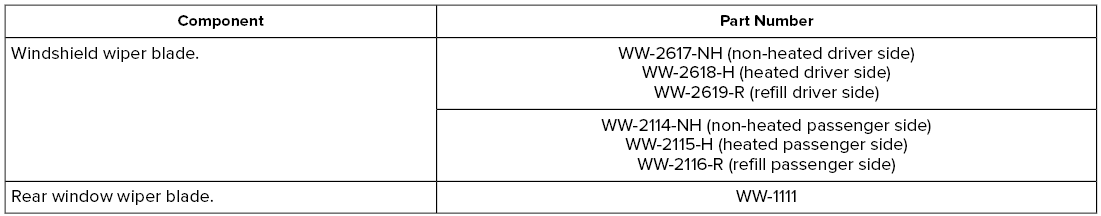

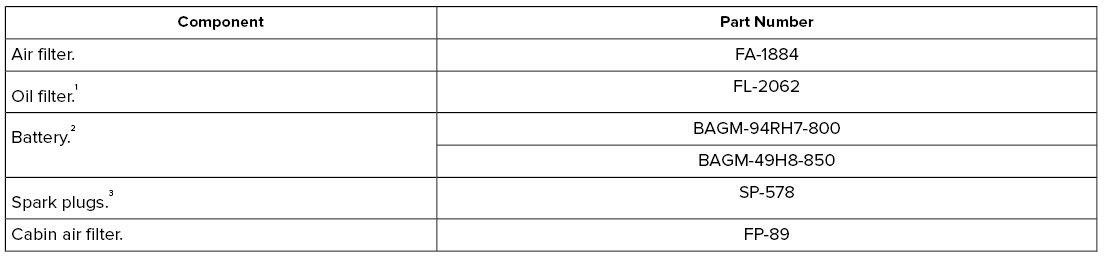

Lincoln Aviator: Capacities and Specifications / Motorcraft Parts - Excluding: Plug-In Hybrid Electric Vehicle (PHEV)

Engine Specifications - Plug-In Hybrid Electric Vehicle (PHEV)

..

Motorcraft Parts - Plug-In Hybrid Electric Vehicle (PHEV)

1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36. 2 See your authorized dealer for correct replacement...
